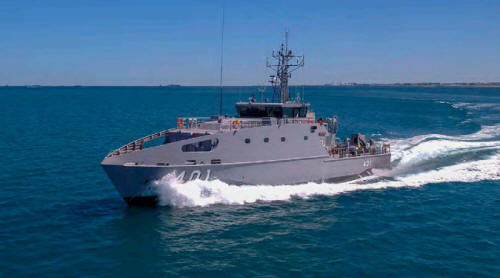

PPBR patrol craft
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| i | Austal, Henderson, Australia | 2020 | building (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
|
|
Length, m |
39.6 |
|
Breadth, m |
8.00 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516C diesels |
|
Power, h. p. |
5440 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
small arms |
| Electronic equipment | radar |
|
Complement |
23 |
Project history: Australian PPBR project, replacement for ASI315 boats.
Modernizations: None.
Naval service: No significant events.
sister-ship Ted Diro (Navy of Papua New Guinea) 2019
