| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Galana | L38 | Gondan, Castropol, Spain | 2.1994 | in service (2020) | |||
| Tana | L39 | Gondan, Castropol, Spain | 2.1994 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
1400 |
|
Length, m |
60.0 pp 63.5 oa |
|
Breadth, m |
13.3 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 MTU-Bazan 16VE diesels |
|
Power, h. p. |
2700 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
none |
| Military load | |
|
Electronic equipment |
Decca radar |
|
Complement |
30 |
Project history: Ordered by Galway Ltd for commercial service but taken over by the navy prior to completion. Have a 4m-wide bow ramp of supporting 70t loads and have a portside vehicle loading ramp.
Modernizations: None.
Naval service: No significant events.

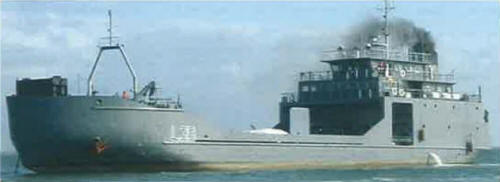

Tana 2013
