| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Nyayo | P3126 | Vosper-Thornycroft, Portchester, UK | 11.1984 | 20.8.1986 | 23.7.1987 | in service (2020) | |
| Umoja | P3127 | Vosper-Thornycroft, Portchester, UK | 11.1984 | 5.3.1987 | 7.9.1987 | in service (2020) |
|
Displacement standard, t |
300 |
|
Displacement full, t |
360 |
|
Length, m |
52.0 pp 56.7 oa |
|
Breadth, m |
8.20 |
|
Draught, m |
2.10 |
|
No of shafts |
4 |
|
Machinery |
4 Paxman Valenta 18RP200CM diesels |
|
Power, h. p. |
17900 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil 45 |
|
Endurance, nm(kts) |
2000(15) |
|
Armament |
2 x 2 Otomat Mk 2 SSM (4 Otomat Mk 2), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 30/90 GCM-A02, 2 x 1 - 20/90 GAM-B01 |
|
Electronic equipment |
Decca AC1226, AWS-4, LIROD-423 (+e/o) radars, Cutlass-E, Cygnus ECM suites, 2x Barricade decoy RL, WSA423 CCS |
|
Complement |
40 |
Project history: Vosper 'Province' class.
Modernizations: 2011, both: - 2 x 2 Otomat Mk 2 SSM, 1 x 1 - 76/62, 1 x 2 - 30/90, 2 x 1 - 20/90, Decca AC1226, LIROD-423 radars, WSA423 CCS; + 2 x 1 - 12.7/90, 2 x 1 - 7.6/90, Furuno FAR2827W radar, Medusa Mk 4B e/o system, CAAIS-450 CCS
Naval service: No significant events.

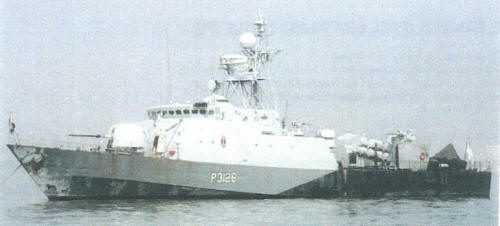

Nyayo 2001

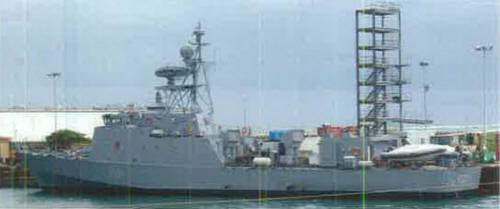

Umoja 2011
