ASTANA patrol boats (1998-2006)
|
Names |
301 Астана [Astana] 302 Орал [Oral] 303 Алматы [Almaty] 304 Ақтау [Aktau] 305 Атырау [Atyrau] 306 Тараз [Taraz] 307 Ɵскемен [Oskemen] |
|
Builders |
Zenit, Oral: 301-307 |
|
Completed |
1998: 301 2000: 302 2002: 305 2003: 303 2004: 304 2005: 306 2006: 307 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
in service (2020): 301-307 |
|
Displacement standard, t |
40 |
|
Displacement full, t |
50 |
|
Length, m |
23.9 |
|
Breadth, m |
5.00 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 M-50 diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1100(15) |
|
Armament |
301-303: 1 x 1 - 30/82 2A42 304-306: 1 x 1 - 12.7/79 307: 1 x 1 - 14.5/93 |
|
Electronic equipment |
Lotsiya radar |
|
Complement |
12 |
Project history: Coast Guard. Modified Soviet project 1400M. First five boats belong to project 0200 'Burkit', last two to project 0200M 'Burkit-M'.
Modernizations: late 2010s, Aktau, Taraz: - 1 x 1 - 12.7/79; + 1 x 2 - 23/82 ZU-23-2
Naval service: No significant events.

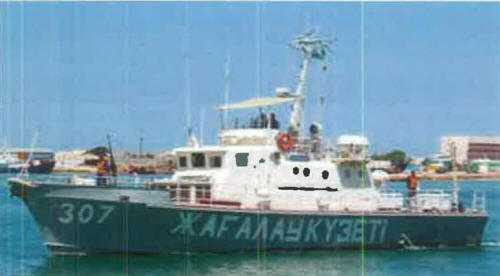

Oskemen 2013
