SHAPSHAN patrol boats (1980-1981/2006)
Gireogi 212 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Øàïøàí [Shapshan] (ex-기러기 251 [Gireogi 251]) | 031 | Korea Tacoma, Chinhae, South Korea | 1981 // 2006 | retired 2016 | |||
| Áàòûð [Batyr] (ex-기러기 239 [Gireogi 239]) | 032 | Korea Tacoma, Chinhae, South Korea | 1980 // 2006 | retired 2014 | |||
| Içåò [Izet] (ex-기러기 233 [Gireogi 233]) | 033 | Korea Tacoma, Chinhae, South Korea | 1980 // 2006 | retired 2016 |
|
Displacement standard, t |
113 |
|
Displacement full, t |
150 |
|
Length, m |
31.3 pp 32.9 - 33.1 oa |
|
Breadth, m |
6.92 |
|
Draught, m |
1.75 hull 2.45 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V538 TB90 diesels |
|
Power, h. p. |
10800 |
|
Max speed, kts |
34 |
|
Fuel, t |
diesel oil 15 |
| Endurance, nm(kts) |
1000(20) |
|
Armament |
1 x 1 - 40/60 Mk 3, 1 x 2 - 30/75 Emerlec EX-30, 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | Raytheon 1645 radar |
|
Complement |
31 |
Project history: Former South Korean 'Sea Dolphin' class boats.
Modernizations: None.
Naval service: No significant events.

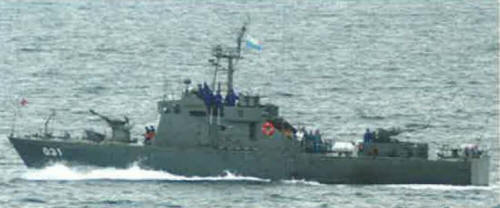

Shapshan 2012
