KAZAKHSTAN patrol craft (2012-2017)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Қазақстан [Kazakhstan] | 250 | Zenit, Oral | 26.4.2012 | 8/2012 | in service (2020) | ||
| Орал [Oral] | 251 | Zenit, Oral | 30.4.2013 | 5.12.2013 | in service (2020) | ||
| Сарыарқа [Saryarka] | 252 | Zenit, Oral | 7.5.2014 | 2014 | in service (2020) | ||
| Манғыстау [Mangystau] | 253 | Zenit, Oral | 20.4.2017 | 21.12.2017 | in service (2020) |
|
Displacement standard, t |
240 |
|
Displacement full, t |
|
|
Length, m |
41.8 |
|
Breadth, m |
7.80 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V4000 M71 diesels |
|
Power, h. p. |
6090 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(12) |
|
Armament |
250: 1 x 2 - 25/82 2M-3M, 1 x 2 - 14.5/93, 1 x 40 - 122 BM-21 Grad RL 251-253: 1 x 4 Baryer-VK SSM (4 Baryer-V), 1 x 4 Arbalet-K SAM (8 Igla 9M39), 1 x 6 - 30/54 AK-306 |
|
Electronic equipment |
Furuno, surf. search radars, Cascade 250 e/o system |
|
Complement |
30 |
Project history: Project 250.
Modernizations: None.
Naval service: No significant events.

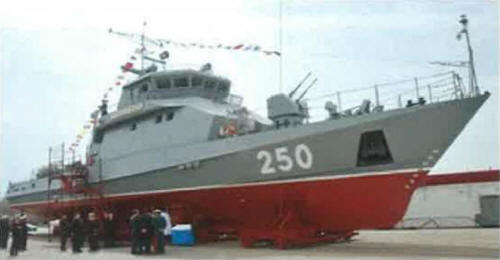

Kazakhstan 2012
