Shirataka 1900
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 白鷹 [Shirataka] | 629 | Schichau, Elbing, Germany | 1897 // 1.1899 | 10.6.1899 | 6/1900 | stricken 1923 |
|
Displacement normal, t |
126 |
|
Displacement full, t |
|
|
Length, m |
46.5 |
|
Breadth, m |
5.10 |
|
Draught, m |
1.26 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Schichau boilers |
|
Power, h. p. |
2600 |
|
Max speed, kts |
28 |
|
Fuel, t |
coal 30 |
| Endurance, nm(kts) | |
|
Armament |
3 x 1 - 47/30 21/2pdr Hotchkiss Mk I, 3 x 1 - 350 TT |
|
Complement |
26 |
Project history: Built in 1897-1898 in Germany by Schichau under Post-war program of 1896-1897, assembled in Japan by Mitsubishi in 1.1899-4/1900.
Modernizations: 1905: - 3 x 1 - 47/30; + 1 x 1 - 76/40 Armstrong N, 2 x 1 - 57/40 6pdr Hotchkiss Mk I
Naval service: No significant events.

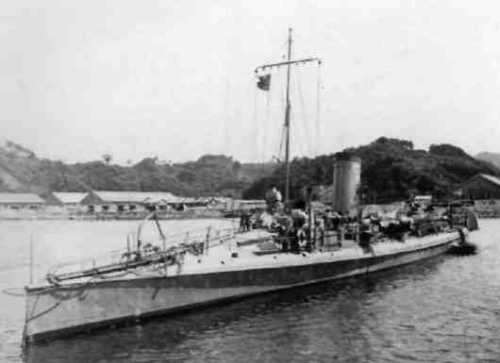

Shirataka
Many thanks to Wolfgang Stöhr for additional information on this page.
