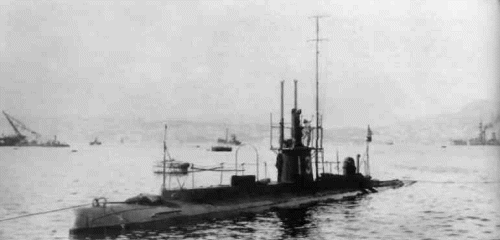

13-go 1920
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 第13号艦 [13-go], 11.1924- 波6 [HA6] | Kawasaki, Kobe | 3.1910 | 18.7.1912 | 9.1912 | stricken 12.1928 |
|
Displacement standard, t |
|
|
Displacement normal, t |
304 / 340 |
|
Length, m |
38.1 pp 38.6 oa |
|
Breadth, m |
3.80 |
|
Draught, m |
3.10 |
|
No of shafts |
1 |
|
Machinery |
1 petrol engine / 1 electric motor |
|
Power, h. p. |
1000 / 300 |
|
Max speed, kts |
10.8 / 8 |
|
Fuel, t |
petrol 18 |
| Endurance, nm(kts) | |
| Armament |
2 - 450 TT (bow, 2) |
|
Complement |
26 |
|
Diving depth operational, m |
30 |
Project history: Vickers/Kawasaki type. Built by Kawasaki in Kobe under the 1910 programme. The design was developed on the basis of English C type submarines. Experimental ship. Single hull.
Modernizations: None.
Naval service: No significant events.
