JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

SUBMARINES

SORYU submarines (2009-)

Kenryu 2015

Name No Yard No Builder Laid down Launched Comp Fate
そうりゅう [Soryu] SS501   Mitsubishi, Kobe 31.3.2005 5.12.2007 30.3.2009 in service (2019)
うんりゅう [Unryu] SS502   Kawasaki, Kobe 31.3.2006 15.10.2008 25.3.2010 in service (2019)
はくりゅう [Hakuryu] SS503   Mitsubishi, Kobe 6.2.2007 16.10.2009 14.3.2011 in service (2019)
けんりゅう [Kenryu] SS504   Kawasaki, Kobe 31.3.2008 15.11.2010 16.3.2012 in service (2019)
ずいりゅう [Zuiryu] SS505   Mitsubishi, Kobe 16.3.2009 20.10.2011 6.3.2013 in service (2019)
こくりゅう [Kokuryu] SS506   Kawasaki, Kobe 21.1.2011 31.10.2013 9.3.2015 in service (2019)
じんりゅう [Jinryu] SS507   Mitsubishi, Kobe 14.2.2012 8.10.2014 7.3.2016 in service (2019)
せきりゅう [Sekiryu] SS508   Kawasaki, Kobe 15.3.2013 2.11.2015 13.3.2017 in service (2019)
せいりゅう [Seiryu] SS509   Mitsubishi, Kobe 22.10.2013 12.10.2016 12.3.2018 in service (2019)
しょうりゅう [Shoryu] SS510   Kawasaki, Kobe 28.1.2015 6.11.2017 2019 building (2019)
おうりゅう [Oryu] SS511   Mitsubishi, Kobe 16.11.2015 4.10.2018 2020 building (2019)
  SS512   Kawasaki, Kobe 27.1.2017 2019 2021 building (2019)
  SS513   Mitsubishi, Kobe 30.12.2017 2020 2022 building (2019)
  SS514   Kawasaki, Kobe 2019 2021 2023 building (2019)



Displacement standard, t

2950

Displacement normal, t

 / 4200

Length, m

83.7

Breadth, m

9.10

Draught, m

8.50

No of shafts

1

Machinery

501-510: 2 Kawasaki-MAN 12V25/25S diesel-generators, 1 electric motor / 4 Stirling 4V-275R engines

511-513: 2 Kawasaki-MAN 12V25/25S diesel-generators, 1 electric motor

Power, h. p.

501-510: 3900 / 8000 / 470

511-513: 3900 / 8000

Max speed, kts

13 / 20

Fuel, t

diesel oil

Endurance, nm(kts)

presumably 6100(7) / 500(4)

Armament

6 - 533 HU-606 TT (bow, 20, inc/ Sub-Harpoon SSM (4 UGM-84))

Electronic equipment

ZPS-6F radar, ZQQ-7, ZQR-1 sonars, NZLR-1B ECM suite, ZYQ-31 CCS

Complement

65

Diving depth operational, m

presumably 400

Project history: Improved version of the Oyashio class; have X-configuration stern control surfaces; fitted with four Swedish-designed Stirling V4-275R Mk-II air-independent propulsion units. Later units are equipped with lithium-ion batteries instead of AIP, receiving the same submerged endurance with significant simplified but more expensive construction.

Modernizations: None.

Naval service: No significant events.

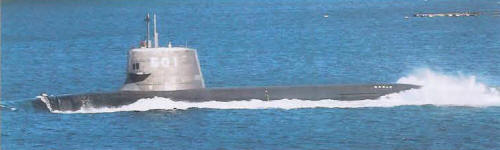

Soryu 2008
