I65 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 伊65 [I65], 5.1942- 伊165 [I165] | Kure K K | 12/1929 | 2.6.1931 | 12/1932 | sunk 27.6.1945 | ||
| 伊66 [I66], 5.1942- 伊166 [I166] | Sasebo K K | 11/1929 | 2.6.1931 | 11/1932 | sunk 17.7.1944 | ||
| 伊67 [I67] | Mitsubishi, Kobe | 1929 | 7.4.1931 | 8/1932 | lost 29.8.1940 |
|
Displacement standard, t |
1575 |
|
Displacement normal, t |
1705 / 2330 |
|
Length, m |
90.5 pp 95.4 wl 97.7 oa |
|
Breadth, m |
8.20 |
|
Draught, m |
4.70 |
|
No of shafts |
2 |
|
Machinery |
2 Kampon diesels / 2 electric motors |
|
Power, h. p. |
6000 / 1800 |
|
Max speed, kts |
20.5 / 8.2 |
|
Fuel, t |
diesel oil 190 |
| Endurance, nm(kts) | 10800(10) / 60(3) |
| Armament |
1 x 1 - 100/50 88-shiki, 1 x 1 - 13.2/76, 6 - 533 TT (4 bow, 2 stern, 14) |
| Electronic equipment | MV-shiki hydrophone |
|
Complement |
75 |
| Diving depth operational, m | 75 |
Project history: Kaidai 5 (Large Admiralty 5) type. Built under the 1927-1931 programme. Development of Kaidai 4 type, differed by increased diving depth and new 100mm gun. Double-hulled.
Modernizations: 4.1945, I165: - 1 x 1 - 100/50; + 2 Kaiten human torpedoes.
Naval service:
I67 was lost 29.8.1940 during fleet manoeuvres off
Bonin. I166 was sunk 17.7.1944 at Singapore by torpedo from British submarine
Telemachus. I165 was sunk 27.6.1945 E off Saipan by
US aircraft.

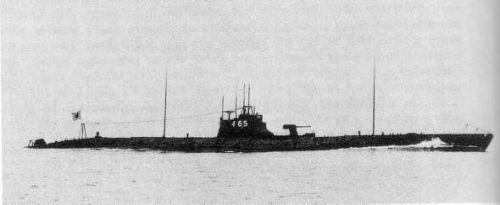

I65 1932
