19-go 1921
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 第19号艦 [19-go], 11.1924- 呂11 [RO11] | Kure K K | 8.1916 | 15.10.1917 | 7.1919 | stricken 1931 | ||
| 第20号艦 [20-go], 11.1924- 呂12 [RO12] | Kure K K | 9.1916 | 1.12.1917 | 9.1919 | stricken 1931 |
|
Displacement standard, t |
|
|
Displacement normal, t |
735 / 1030 |
|
Length, m |
69.2 |
|
Breadth, m |
6.40 |
|
Draught, m |
3.40 |
|
No of shafts |
2 |
|
Machinery |
2 Sulzer diesels / 2 electric motors |
|
Power, h. p. |
2600 / 1200 |
|
Max speed, kts |
18 / 9 |
|
Fuel, t |
diesel oil 60 |
| Endurance, nm(kts) | 4000(10) / 85(4) |
| Armament |
1 x 1 - 76/23 41-shiki, 2 x 1 - 7.7/80, 6 - 450 TT (4 bow, 2 side drop-collars, 10) |
|
Complement |
44 |
|
Diving depth operational, m |
30 |
Project history: Kaichu (1) (medium Navy design No1) type. Designed in Japan in 1916 on the basis of Schneider-Laubeuf French submarines. In their construction peculiarities of Far East theatre for the first time have been considered. Submarines besides transverse bulkheads had longitudinal ones, that theoretically should raise their damage tolerance, but in practice it has made them only extremely tight and inconvenient for habitability. Diesels were delivered by Sulzer from neutral Switzerland. Double-hulled.
Boats of Kaidai 1 class as a whole have been recognised successful, however they have become operational already after the First World War.
Modernizations: None.
Naval service: No significant events.

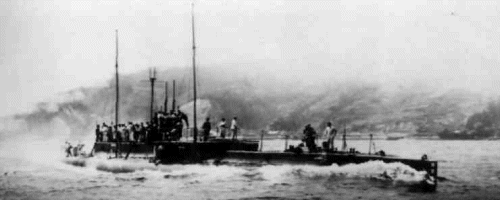

RO11
