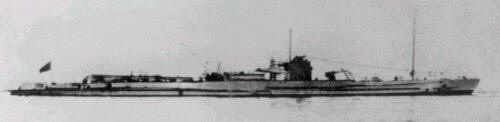

I6 1944
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 伊6 [I6] | Kawasaki, Kobe | 10/1932 | 31.3.1934 | 5.1935 | sunk 14.7.1944 |
|
Displacement standard, t |
1900 |
|
Displacement normal, t |
2243 / 3061 |
|
Length, m |
92.1 pp 95.7 wl 98.5 oa |
|
Breadth, m |
9.06 |
|
Draught, m |
5.31 |
|
No of shafts |
2 |
|
Machinery |
2 Kampon diesels / 2 electric motors |
|
Power, h. p. |
8000 / 2600 |
|
Max speed, kts |
20 / 7.5 |
|
Fuel, t |
diesel oil 190 |
| Endurance, nm(kts) | 20000(10) / 60(3) |
| Armament |
1 x 1 - 127/40 88-shiki, 1 x 1 - 13.2/76, 6 - 533 TT (4 bow, 2 stern, 17), 1 catapult, 1 seaplane (E9W1) |
| Electronic equipment | 93-shiki sonar, 93-shiki hydrophone |
|
Complement |
97 |
|
Diving depth operational, m |
80 |
Project history: Junsen 2 (Cruiser submarine 2) type. Built under 1st Supplementary programme of 1931, design was close to Junsen 1M type, differed by a little more engine power and another artillery: 127mm dual-purpose gun instead of 140mm. Arrangement of aviation armament (containers and a catapult) did not differ from accepted on Junsen 1M.
Modernizations: None.
Naval service: I6 after 30.6.1944 was lost off Saipan (presumably sunk 14.7.1944 in Mariana Islands area by US escort destroyer William Ñ. Miller).
I6
