JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

SUBMARINES

HARUSHIO submarines (1990 - 1997)

Fuyushio 2000

Name No Yard No Builder Laid down Launched Comp Fate
はるしお [Harushio] SS583   Mitsubishi, Kobe 21.4.1987 26.7.1989 30.11.1990 discarded 3.2009
なつしお [Natsushio] SS584   Kawasaki, Kobe 8.4.1988 20.3.1990 20.3.1991 discarded 3.2010
はやしお [Hayashio] SS585, 3.2008- TSS3606   Mitsubishi, Kobe 9.12.1988 17.1.1991 25.3.1992 TS 3.2008, discarded 3.2011
あらしお [Arashio] SS586   Kawasaki, Kobe 8.1.1990 17.3.1992 17.3.1993 discarded 3.2012
わかしお [Wakashio] SS587   Mitsubishi, Kobe 12.12.1990 22.1.1993 1.3.1994 discarded 3.2013
ふゆしお [Fuyushio] SS588, 3.2011- TSS3607   Kawasaki, Kobe 12.12.1991 16.2.1994 7.3.1995 TS 3.2011, discarded 3.2015
あさしお [Asashio] SS589, 3.2000- TSS3601   Mitsubishi, Kobe 24.12.1992 12.7.1995 12.3.1997 TS 3.2000, test ship 4.2002, discarded 2.2017



Displacement standard, t

583-588: 2450

589: 2560

Displacement normal, t

583-588:  / 2750

589: 2850

Length, m

77.4

Breadth, m

10.5

Draught, m

7.70

No of shafts

1

Machinery

2 Kawasaki-MAN 12V25/25S diesel-generators, 2 Toshiba Electric electric motors

Power, h. p.

3400 / 7220

Max speed, kts

12 / 20

Fuel, t

diesel oil 300

Endurance, nm(kts)

5500(12) /

Armament

6 - 533 HU-603B TT (bow, 20, inc/ Sub-Harpoon SSM (4 UGM-84))

Electronic equipment

583-585: ZPS-6 radar, ZQQ-5, ZQR-1 sonars, ZLA-7 ECM suite, ZYQ-2B CCS

586-589: ZPS-6 radar, ZQQ-5B, ZQR-1 sonars, ZLA-7 ECM suite, ZYQ-2B CCS

Complement

75

Diving depth operational, m

350

Project history: A natural progression from the previous Yushio class with improved noise reduction and ZQR-1 towed array sonar. Can fire Sub-Harpoon from the torpedo tubes.

Modernizations: 2000, Asashio; 2008, Hayashio; 2011, Fuyushio: as TS carried only 4 torpedoes, ZQR-1 sonar array was removed, 60 crewmembers + 20 trainees.

12.2001, Asashio: lengthened (87.0m oa, 2900/3700t), AIP with 2 88kW Stirling V4-275R Mk II engines was installed

Naval service: No significant events.

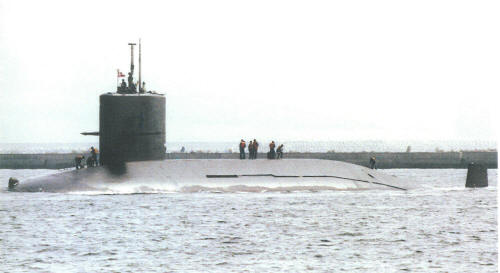

Arashio 2003
