10-go 1911
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 第10号艦 [10-go], 11.1924- 波3 [HA3] | 397 | Vickers, Barrow, UK / Kure K K | 9/1910 | 4.3.1911 | 8/1911 | stricken 12.1928 | |
| 第11号艦 [11-go], 11.1924- 波4 [HA4] | 398 | Vickers, Barrow, UK / Kure K K | 9/1910 | 18.3.1911 | 8/1911 | stricken 12.1928 | |
| 第12号艦 [12-go], 11.1924- 波5 [HA5] | 399 | Vickers, Barrow, UK / Kure K K | 9/1910 | 27.3.1911 | 8/1911 | stricken 12.1928 |
|
Displacement standard, t |
|
|
Displacement normal, t |
291 / 326 |
|
Length, m |
40.1 pp 43.3 oa |
|
Breadth, m |
4.10 |
|
Draught, m |
3.40 |
|
No of shafts |
1 |
|
Machinery |
1 16-cyl Vickers petrol engine / 1 electric motor |
|
Power, h. p. |
600 / 300 |
|
Max speed, kts |
12 / 8.5 |
|
Fuel, t |
petrol 15.5 |
| Endurance, nm(kts) | 660(12) / 60(4) |
| Armament |
2 - 450 TT (bow, 2), 1 x 1 - 6.5/115 |
|
Complement |
25 |
|
Diving depth operational, m |
30 |
Project history: Vickers C(2) type. Built in Britain by Vickers and assembled in Japan from sections. The same type as British C type. Single-hulled. Japanese did not have experience of designing of modern submarines, and it was necessary to be content with already hopelessly out-of-date design.
Modernizations: None.
Naval service: No significant events.

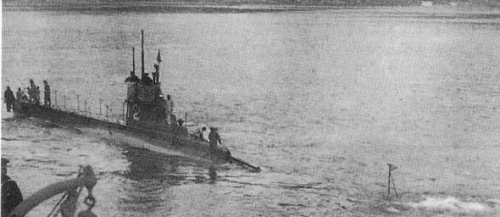

12-go 1915
Many thanks to Wolfgang Stöhr for additional information on this page.
