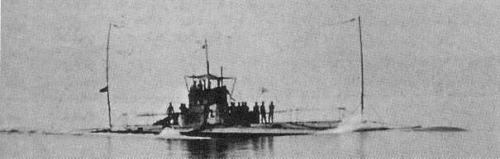

8-go 1909
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 第8号艦 [8-go], 11.1924- 波1 [HA1] | 366 | Vickers, Barrow, UK | 8.1907 | 19.5.1908 | 2.1909 | stricken 12.1928 | |
| 第9号艦 [9-go], 11.1924- 波2 [HA2] | 367 | Vickers, Barrow, UK | 8.1907 | 19.5.1908 | 3.1909 | stricken 12.1928 |
|
Displacement standard, t |
|
|
Displacement normal, t |
286 / 321 |
|
Length, m |
40.1 pp 43.3 oa |
|
Breadth, m |
4.10 |
|
Draught, m |
3.40 |
|
No of shafts |
1 |
|
Machinery |
1 16-cyl Vickers petrol engine / 1 electric motor |
|
Power, h. p. |
600 / 300 |
|
Max speed, kts |
12 / 8.5 |
|
Fuel, t |
petrol 15 |
| Endurance, nm | 660(12) / 60(4) |
| Armament |
2 - 450 TT (bow, 2), 1 x 1 - 6.5/115 |
|
Complement |
26 |
|
Diving depth operational, m |
30 |
Project history: Copy of RN "C" class submarines. Single-hulled, ordered under the 1907 programme. Japanese did not have experience of designing of modern submarines, and it was necessary to be content with already hopelessly out-of-date design.
Modernizations: None.
Naval service: No significant events.
9-go 1911
Many thanks to Wolfgang Stöhr for additional information on this page.
