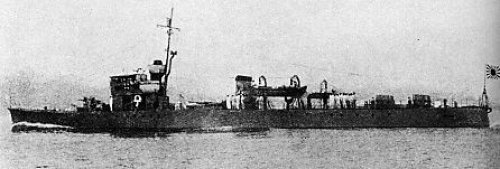

3-go 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 第3号駆潜艇 [3-go] | Tsurumi, Yokohama | 4/1935 | 6.6.1936 | 10.1936 | captured 8.1945, scuttled 11.7.1946 |
|
Displacement standard, t |
270 |
|
Displacement full, t |
284 |
|
Length, m |
53.0 pp 55.0 wl 56.1 oa |
|
Breadth, m |
5.60 |
|
Draught, m |
2.18 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2500 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(14) |
| Armament |
1 x 2 - 40/62 HI 91-shiki, 2 x 1 - 7.7/80, 2 DCR (12) |
| Electronic equipment | SCAM sonar |
|
Complement |
45 |
Project history: 2nd Supplementary programme of 1934 provided building of one chaser on slightly modified design of Ch1, thoroughly redesigned towards reduction of the upper weight. ChÇ very much resembled a prototype, but was a little bit less and had only one rudder instead of two.
Modernizations: 1944: - 2 x 1 - 7.7/80; + 1 x 3 - 25/60 96-shiki, 2 DCT (36 DC at all), 93-shiki hydrophone
Naval service: No significant events.
3-go
