JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

MINE WARFARE SHIPS

KASADO coastal minesweepers (1958 - 1968)

Kasado 1960

Name No Yard No Builder Laid down Launched Comp Fate
かさど [Kasado] MSC604   Hitachi Zosen, Kanagawa 7.1957 19.3.1958 6.1958 survey vessel 3.1974
しさか [Shisaka] MSC605   NKK, Tsurumi 7.1957 20.3.1958 8.1958 auxiliary 8.1973
かなわ [Kanawa] MSC606   Hitachi Zosen, Kanagawa 8.1958 22.4.1959 7.1959 auxiliary 9.1974
さきと [Sakito] MSC607   NKK, Tsurumi 8.1958 22.4.1959 8.1959 auxiliary 8.1974
はぶし [Habushi] MSC608   Hitachi Zosen, Kanagawa 8.1958 19.6.1959 9.1959 survey vessel 8.1974
こうづ [Kouzu] MSC609, 7.1972- MST473   NKK, Tsurumi 3.1959 12.11.1959 2.1960 MCM support ship 7.1972, stricken 3.1981
たたら [Tatara] MSC610   Hitachi Zosen, Kanagawa 3.1959 14.1.1960 3.1960 survey vessel 12.1972
つくみ [Tsukumi] MSC611   NKK, Tsurumi 3.1959 12.1.1960 4.1960 auxiliary 12.1972
みくら [Mikura] MSC612   Hitachi Zosen, Kanagawa 3.1959 14.3.1960 5.1960 auxiliary 12.1972
しきね [Shikine] MSC613   NKK, Tsurumi 1.1960 22.7.1960 11.1960 auxiliary 3.1976
ひらど [Hirado] MSC614   Hitachi Zosen, Kanagawa 3.1960 3.10.1960 12.1960 survey vessel 3.1976
こしき [Koshiki] MSC615   Hitachi Zosen, Kanagawa 3.1961 9.11.1961 1.1962 auxiliary 4.1974
ほたか [Hotaka] MSC616   NKK, Tsurumi 3.1961 23.10.1961 2.1962 auxiliary 11.1976
からと [Karato] MSC617   NKK, Tsurumi 3.1962 11.12.1962 3.1963 auxiliary 3.1978
はりお [Hario] MSC618   Hitachi Zosen, Kanagawa 3.1962 10.12.1962 3.1963 survey vessel 3.1978
むつれ [Mitsure] MSC619   Hitachi Zosen, Kanagawa 3.1963 16.12.1963 3.1964 auxiliary 3.1980
ちぶり [Chiburi] MSC620   NKK, Tsurumi 3.1963 29.11.1963 3.1964 auxiliary 3.1980
おおつ [Ootsu] MSC621, 3.1981- MST474   NKK, Tsurumi 3.1964 5.11.1964 2.1965 MCM support ship 3.1981, stricken 12.1986
くだこ [Kudako] MSC622   Hitachi Zosen, Kanagawa 2.1964 18.12.1964 3.1965 auxiliary 3.1981
りしり [Rishiri] MSC623   Hitachi Zosen, Kanagawa 3.1965 22.11.1965 3.1966 auxiliary 3.1982
れぶん [Rebun] MSC624   NKK, Tsurumi 3.1965 7.12.1965 3.1966 auxiliary 3.1982
あまみ [Amami] MSC625   NKK, Tsurumi 3.1966 31.10.1966 3.1967 auxiliary 1.1983
うるめ [Urume] MSC626   Hitachi Zosen, Kanagawa 2.1966 12.11.1966 1.1967 auxiliary 1.1983
みなせ [Minase] MSC627   Hitachi Zosen, Kanagawa 2.1966 10.1.1967 3.1967 auxiliary 1.1984
いぶき [Ibuki] MSC628   NKK, Tsurumi 2.1967 2.12.1967 2.1968 auxiliary 1.1984
かつら [Katsura] MSC629   NKK, Tsurumi 2.1967 18.9.1967 2.1968 auxiliary 1.1984



Displacement standard, t

340

Displacement full, t

360

Length, m

45.5

Breadth, m

8.40

Draught, m

2.30

No of shafts

2

Machinery

2 Mitsubishi YV10ZC15/20 diesels

Power, h. p.

1200

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

1 x 1 - 20/70 Mk 10, 53-shiki mechanical, 56-shiki magnetic, A Mk 4v/6b acoustic minesweeping gear

Sensors

MSC604, 605: OPS-3 radar, UQS-1D sonar

MSC606-624: OPS-4D radar, ZQS-1 sonar

MSC625-629: OPS-9 radar, ZQS-1 sonar

Complement

39

Project history: Wooden coastal minesweepers, similar to many other classes in Western navies.

Modernizations: none

Naval service: Mostly converted to mine clearance diver support ships in 1970s-1980s.

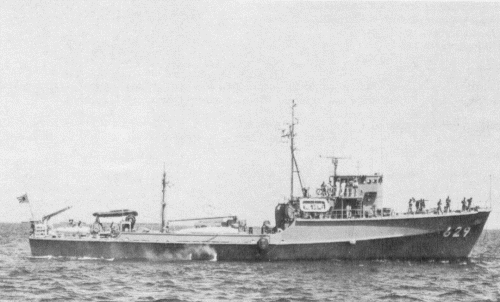

Katsura 1979
