Hayase 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| はやせ [Hayase] | MST462, 3.1998- ASU7020 | IHI, Tokyo | 16.9.1970 | 21.6.1971 | 6.11.1971 | TS 3.1998, stricken 12.2002 |
|
Displacement standard, t |
2000 |
|
Displacement normal, t |
3050 |
|
Length, m |
99.0 |
|
Breadth, m |
14.5 |
|
Draught, m |
4.20 |
|
No of shafts |
2 |
|
Machinery |
4 Kawasaki-MAN V6V22/30ATL diesels |
|
Power, h. p. |
6400 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 76/50 Mk 33, 2 x 1 - 20/70 Mk 10, 2 x 3 - 324 68-shik TT, 200 mines, helicopter deck |
| Electronic equipment | OPS-14, OPS-17, SPG-34 radars, SQS-11A, ZQS-1B sonars |
|
Complement |
180 |
Project history: A multi-role warfare ship, with five rails for minelaying, a platform aft for landing a minesweeping helicopter, and the faculties to support mine counter-measures operations.
Modernizations: none
Naval service: No significant events.

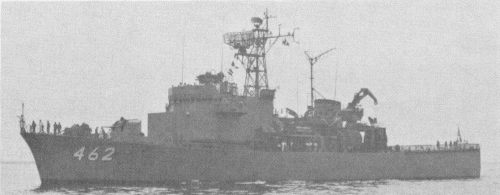

Hayase 1978
