Chichijima 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| はつしま [Hatsushima] | MSC649, 3.1995- YAS98 | NKK, Tsurumi | 6.12.1977 | 30.10.1978 | 30.3.1979 | divers support ship 3.1995, stricken 7.2001 | |
| にのしま [Ninoshima] | MSC650, 3.1996- YAS100 | Hitachi, Kanagawa | 8.5.1978 | 7.8.1979 | 19.12.1979 | divers support ship 3.1996, stricken 5.2002 | |
| みやじま [Miyajima] | MSC651, 3.1996- YAS101 | NKK, Tsurumi | 8.11.1978 | 18.9.1979 | 29.1.1980 | divers support ship 3.1996, stricken 5.2002 | |
| えのしま [Enoshima] | MSC652 | NKK, Tsurumi | 4.10.1979 | 26.7.1980 | 25.12.1980 | stricken 12.1996 | |
| うきしま [Ukishima] | MSC653 | Hitachi, Kanagawa | 15.5.1979 | 11.7.1980 | 27.11.1980 | stricken 3.1997 | |
| おおしま [Oshima] | MSC654 | Hitachi, Kanagawa | 2.6.1980 | 17.6.1981 | 26.11.1981 | stricken 3.1998 | |
| にいじま [Niijima] | MSC655, 3.1998- MCL722 | NKK, Tsurumi | 4.8.1980 | 2.6.1981 | 26.11.1981 | MCM support ship 3.1998, stricken 3.2002 | |
| やくしま [Yakushima] | MSC656, 5.1999- MCL723 | NKK, Tsurumi | 15.6.1981 | 22.6.1982 | 17.12.1982 | MCM support ship 5.1999, stricken 2.1999 | |
| なるしま [Narushima] | MSC657 | Hitachi, Kanagawa | 29.5.1981 | 7.6.1982 | 17.12.1982 | stricken 6.1999 | |
| ちちじま [Chichijima] | MSC658 | Hitachi, Kanagawa | 2.6.1982 | 13.7.1983 | 16.12.1983 | stricken 3.2000 | |
| とりしま [Torishima] | MSC659 | NKK, Tsurumi | 30.6.1982 | 23.6.1983 | 16.12.1983 | stricken 12.2000 | |
| ははじま [Hahajima] | MSC660, 3.2002- MCL724 | NKK, Tsurumi | 20.5.1983 | 27.6.1984 | 27.6.1984 | drone control ship 3.2002, stricken 2.2006 | |
| たかしま [Takashima] | MSC661 | Hitachi, Kanagawa | 7.6.1983 | 18.6.1984 | 18.12.1984 | stricken 6.2001 | |
| ぬわじま [Nuwajima] | MSC662 | Hitachi, Kanagawa | 21.5.1984 | 5.6.1985 | 12.12.1985 | stricken 5.2002 | |
| えたじま [Etajima] | MSC663 | NKK, Tsurumi | 22.5.1984 | 17.6.1985 | 12.12.1985 | stricken 5.2002 | |
| かみしま [Kamijima] | MSC664, 2.2004- MCL725 | NKK, Tsurumi | 10.5.1985 | 20.6.1986 | 16.12.1986 | drone control ship 2.2004, stricken 12.2008 | |
| ひめしま [Himejima] | MSC665 | Hitachi, Kanagawa | 16.5.1985 | 10.6.1986 | 16.12.1986 | stricken 12.2004 | |
| ひめしま [Ogishima] | MSC666, 2.2006- MCL726 | Hitachi, Kanagawa | 16.5.1985 | 10.6.1986 | 19.12.1986 | drone control ship 2.2006, stricken 2.2010 | |
| もろしま [Moroshima] | MSC667 | NKK, Tsurumi | 22.5.1986 | 10.6.1986 | 19.12.1986 | stricken 2.2005 | |
| ゆりしま [Yurishima] | MSC668 | NKK, Tsurumi | 14.5.1987 | 13.5.1988 | 15.12.1988 | stricken 2.2007 | |
| ひこしま [Hikojima] | MSC669 | Hitachi, Kanagawa | 12.5.1987 | 2.6.1988 | 15.12.1988 | stricken 3.2011 | |
| あわしま [Awashima] | MSC670 | Hitachi, Kanagawa | 12.5.1988 | 6.6.1989 | 13.12.1989 | stricken 3.2009 | |
| さくしま [Sakushima] | MSC671, 2.2006- MCL727 | NKK, Tsurumi | 17.5.1988 | 2.6.1989 | 13.12.1989 | drone control ship 2.2006, stricken 4.2013 |
|
Displacement standard, t |
MSC649-669: 440 MSC670, 671: 490 |
|
Displacement full, t |
MSC649-669: 520 MSC670, 671: 550 |
|
Length, m |
MSC649-669: 52.0 pp 55.0 oa MSC670, 671: 55.0 pp 58.0 oa |
|
Breadth, m |
9.40 |
|
Draught, m |
MSC649-669: 2.50 MSC670, 671: 2.90 |
|
No of shafts |
2 |
|
Machinery |
MSC649-665: 2 Mitsubishi 12ZC15/20i diesels MSC666-671: 2 Mitsubishi 6NMU-TA-I diesels |
|
Power, h. p. |
MSC649-665: 1440 MSC666-671: 1400 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2400(10) |
|
Armament |
MSC649-652: 1 x 1 - 20/70 Mk 10, S-4 USV, 53-shii mechanical, S-6 magnetic, S-2 acoustic minesweeping gear MSC653-671: 1 x 3 - 20/76 Sea Vulcan JM-61-B, S-4 USV, 53-shiki mechanical, S-6 magnetic, S-2 acoustic minesweeping gear |
|
Sensors |
OPS-9 radar, ZQS-2B sonar |
|
Complement |
45 |
Project history: Enlarged versions of the Takami class, and also wooden hulled. Besides conventional sweep gear, they carried unmanned minehunting vehicles.
Modernizations: early 1980s, Hatsushima, Ninoshima, Miyajima, Enoshima: - 1 x 1 - 20/70; + 1 x 3 - 20/76 Sea Vulcan JM-61-B
1995, Hatsushima; 1996, Ninoshima, Miyajima: - minesweeping equipment, ZQS-2B sonar; + decompression chamber
1998, Niijima; 1999, Yakushima; 2002, Hahajima; 2004, Kamijima; 2006, Ogishima, Sakushima: + SAM-type minesweeping drone control equipment
Naval service: No significant events.

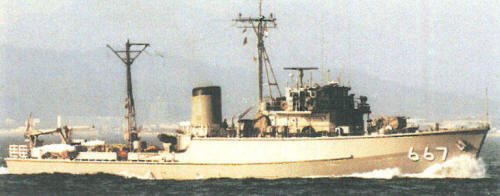

Moroshima 2003
