| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| あわじ [Awaji] | MSO304 | Japan Marine United, Tsurumi | 27.2.2014 | 27.10.2015 | 16.3.2017 | in service (2019) | |
| ひらど [Hirado] | MSO305 | Japan Marine United, Tsurumi | 10.4.2015 | 10.2.2017 | 16.3.2018 | in service (2019) | |
| MSO306 | Japan Marine United, Tsurumi | 2018 | 2020 | 2021 | building (2019) |
|
Displacement standard, t |
690 |
|
Displacement full, t |
780 |
|
Length, m |
66.8 |
|
Breadth, m |
11.0 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 3 - 20/76 Sea Vulcan JM-61-B, EMD USV, 1-shiki mechanical minesweeping gear |
|
Sensors |
OPS-39Y radar, ZQS-4 sonar, OZZ-2 TV-system. |
|
Complement |
54 |
Project history: GRP hull. Replacement for Yayeama class with new minehunting system.
Modernizations: None.
Naval service: No significant events.

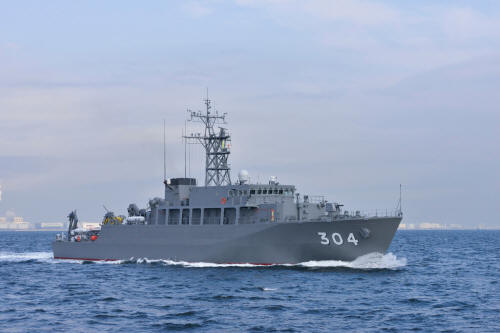

Awaji 2017
