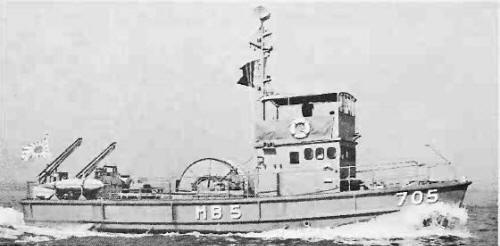

1-go 1960
|
Names |
MSB701-706 1号-6号 [1-go-6-go] |
|
Builders |
Hitachi Zosen, Kanagawa: MSB701, 702 NKK, Tsurumi: MSB703-706 |
|
Commissioned |
3-4/1957: MSB701-704 3/1959: MSB705, 706 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
3/1973: MSB701, 702 3-12/1974: MSB703-706 |
|
Displacement standard, t |
43 |
|
Displacement full, t |
45 |
|
Length, m |
18.6 |
|
Breadth, m |
5.04 |
|
Draught, m |
1.34 |
|
No of shafts |
2 |
|
Machinery |
2 Mitsubishi DH7M diesels |
|
Power, h. p. |
320 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
53-shiki mechanical or A Mk 6b acoustic minesweeping gear |
|
Sensors |
none |
|
Complement |
10 |
Project history: Wooden minesweeping boats built on the basis of the US MSB design. During minesweeping operations they were supported by MSTs.
Modernizations: None.
Naval service: No significant events.
5-go 1962
