IMPERIAL JAPANESE NAVY (JAPAN)

MINE WARFARE SHIPS

YAEYAMA minelayer - netlayer (1932)

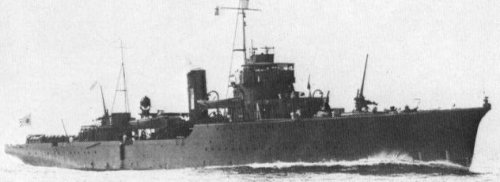

Yaeyama 1941

Name No Yard No Builder Laid down Launched Comp Fate
八重山 [Yaeyama]     Kure K K 8/1930 15.10.1931 8.1932 sunk 24.9.1944



Displacement standard, t

1135

Displacement full, t

1384

Length, m

85.5 pp 89.0 wl 93.5 oa

Breadth, m

10.7

Draught, m

2.84

No of shafts

2

Machinery

2 VTE, 2 Kampon boilers

Power, h. p.

4800

Max speed, kts

20

Fuel, t

coal 278 + oil 164
Endurance, nm(kts) 4800(10)

Armament

2 x 1 - 120/45 3-shiki, 2 x 1 - 13.2/76, 185 mines or nets

Electronic equipment OV-gata hydrophone

Complement

150

Project history: Built under the 1927 programme. Development of Shirataka. First Japanese all-welded warship. Besides mines, could carry antisubmarine nets.

Modernizations: 1943 - 1944: - mine capacity; + 4 DCT (36), 93-shiki hydrophone

Naval service: 1.2.1942 Yaeyama was damaged in Subik Bay (Philippines) by US MTB ÐÒ32, sunk 24.9.1944 at US by American carrier aircraft.



Yaeyama
