IMPERIAL JAPANESE NAVY (JAPAN)

MINE WARFARE SHIPS

OKINOSHIMA minelayer (1936)

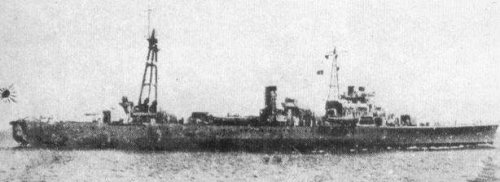

Okinoshima 1941

Name No Yard No Builder Laid down Launched Comp Fate
沖島 [Okinoshima]     Harima Zosen 9.1934 15.11.1935 9.1936 sunk 11.5.1942



Displacement standard, t

4400

Displacement normal, t

5000

Length, m

113.0 pp 119,3 wl 124.5 oa

Breadth, m

15.7

Draught, m

5.49

No of shafts

2

Machinery

2 sets geared steam turbines, 4 Kampon boilers

Power, h. p.

9000

Max speed, kts

20

Fuel, t

oil
Endurance, nm(kts) 9000(10)

Armament

2 x 2 - 140/50 3-shiki, 2 x 1 - 76/40 11-shiki, 2 x 2 - 13.2/76, 500 mines, 1 catapult, 1 seaplane (E4N, E5Y, E7K, E8N)

Electronic equipment 93-shiki hydrophone

Complement

445

Project history: Built under 1st Supplementary programme of 1931. Development of cruiser-minelayer idea, which first representative in Japan became Itsukushima. New ship, in comparison with latter, was much larger, faster and more strongly armed. For the first time there was a catapult and a seaplane. She was estimated by Japanese as successful type of multipurpose ship. Can lay antisubmarine nets. Standard seaplane was E7K.

Modernizations: 1942: + 2x 1-shiki 2-go radars

Naval service: 4.5.1942 Okinoshima was damaged at Tulagi by US carrier aircraft, 11.5.1942 damaged by US submarine S42 and next day has sunk at Rabaul as result of received damages.

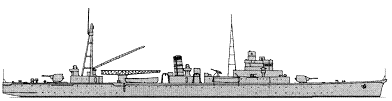

Okinoshima
