YF2121 2000
|
Names |
YF2121 YF2124, 2125 YF2127-2129 YF2132 YF2135 YF2138 YF2141 |
|
Builders |
Ishihara, Takasago: YF2121, 2124, 2125, 2127-2129, 2132, 2135, 2138, 2141 |
|
Commissioned |
1989: YF2121 1990: YF2124, 2125 1992: YF2127-2129 1993: YF2132 1995: YF2135 1996: YF2138 1997: YF2141 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): YF2121, 2124, 2125, 2127-2129, 2132, 2135, 2138, 2141 |
|
Displacement standard, t |
24 |
|
Displacement full, t |
56 |
|
Length, m |
17.1 |
|
Breadth, m |
4.37 |
|
Draught, m |
1.17 |
|
No of shafts |
2 |
|
Machinery |
YF2121, 2124, 2125, 2127-2129, 2132, 2135, 2141: 2 Isuzu E120-MF6R diesels YF2138: 2 UM6 SD1 TCA diesels |
|
Power, h. p. |
450 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
130(9) |
|
Armament |
none |
|
Military load |
80 troops or 30 t of cargo |
|
Complement |
4 |
Project history: Officially designated "Communications Boats." Design based on U.S. LCM(6) landing craft. Employed as local transports for stores and personnel.
Modernizations: None.
Naval service: No significant events.

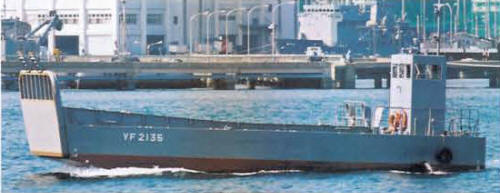

YF2135 2007
