| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 第109号哨戒艇 [109-go] (ex-Fazant) | Soerabaya Droogdok, Netherlands | 1930 | 1931 // 10.1944 | surrendered 8.1945, to Netherlands 4.1946 (Fazant) |
|
Displacement standard, t |
623 |
|
Displacement full, t |
|
|
Length, m |
47.8 wl 51.2 oa |
|
Breadth, m |
8.40 |
|
Draught, m |
2.70 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 2 cylindrical boilers |
|
Power, h. p. |
525 |
|
Max speed, kts |
12 |
|
Fuel, t |
|
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/40 11-shiki, 4 DCT (48) |
| Complement | 40 |
Project history: After capture by Japan in the beginning of 1942 of extensive possession in South-East Asia, Japanese has got some number of enemy ships in damaged condition, abandoned by Americans, British and Dutch at retreat. Part of these ships has been repaired by Japanese and commissioned by IJN as patrols. Three destroyers, British Thracian, American Stewart and Dutch Banckert, become in the IJN patrols Ð101, Ð102 and Ð106, have appeared the largest trophies. Remaining were former minesweepers, tugs and colonial service vessels of Dutch and American Navies.
Dutch colonial service vessel Fazant 1.3.1942 foundered, salvaged by Japanese and after repair 15.10.1944 commissioned as patrol Ð109.
Modernizations: None.
Naval service: In 1946 P109 was returned to Netherlands.

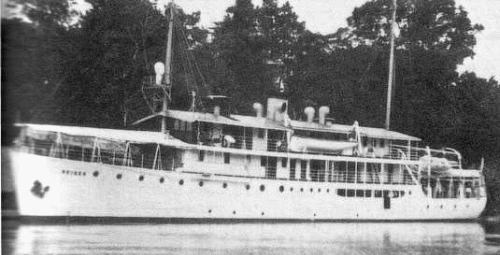

sister-ship Reiger 1932
