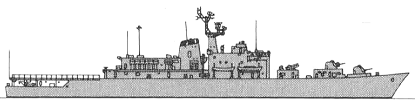

Katori 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| かとり [Katori] | TV3501 | Ishikawajima-Harima, Tokyo | 8.12.1967 | 19.11.1968 | 10.9.1969 | discarded 3.1998 |
|
Displacement standard, t |
3372 |
|
Displacement full, t |
4100 |
|
Length, m |
122.0 pp 127.5 oa |
|
Breadth, m |
15.0 |
|
Draught, m |
4.30 max |
|
No of shafts |
2 |
|
Machinery |
2 sets Ishikawajima geared steam turbines, 2 Ishikawajima- Foster Wheeler boilers |
|
Power, h. p. |
20000 |
|
Max speed, kts |
25 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 7000(18) |
|
Armament |
2 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 32 TT, 1 x 4 - 375 71-shiki ASWRL, helicopter deck |
|
Electronic equipment |
OPS-2, OPS-15, Mk 34 radars, SQS-4 sonar, NOLR-1B ECM suite |
|
Complement |
460 (inc 165 cadets) |
Project history: Capable of serving as a TS in peacetime and as an escort command ship at wartime. Ordered under the 1966 programme.
Modernizations: early 1980s: - SQS-4 sonar; + OQS-3 sonar
early 1990s: - OPS-15 radar; + OPS-17, OPS-20 radars
Naval service: No significant events.

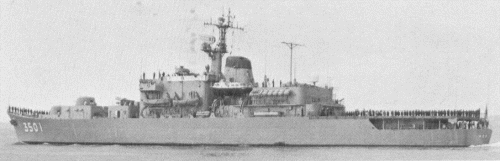

Katori 1979
