Kamome 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| かり [Kari] | PC301 | Fujinagata, Osaka | 1.1956 | 26.9.1956 | 2/1957 | discarded 3.1977 | |
| きじ [Kiji] | PC302 | Iino, Maizuru | 12.1955 | 11.9.1956 | 1/1957 | discarded 3.1977 | |
| たか [Taka] | PC303 | Fujinagata, Osaka | 1.1956 | 17.11.1956 | 3/1957 | discarded 3.1977 | |
| わし [Washi] | PC304 | Iino, Maizuru | 12.1955 | 12.11.1956 | 3/1957 | discarded 3.1977 | |
| かもめ [Kamome] | PC305 | Uraga, Yokosuka | 1.1956 | 3.9.1956 | 1/1957 | discarded 3.1977 | |
| つばめ [Tsubame] | PC306 | Kure Jukogyo, Kure | 3.1956 | 10.10.1956 | 1/1957 | discarded 5.1977 | |
| みさご [Misago] | PC307 | Uraga, Yokosuka | 1.1956 | 1.11.1956 | 2/1957 | discarded 12.1977 |
|
Displacement standard, t |
PC301-304: 310 PC305-307: 330 |
|
Displacement full, t |
PC301-304: 340 PC305-307: 360 |
|
Length, m |
PC301-304: 56.0 PC305-307: 54.0 |
|
Breadth, m |
PC301-304: 6.50 PC305-307: 6.60 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
PC301-304: 2 Kawasaki - MAN V8V22/30 diesels PC305-307: 2 Mitsui - Burmeister & Wain 635VBU-45 diesels |
|
Power, h. p. |
4000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
PC301-304: 1 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCT, 2 DCR PC305-307: 1 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCR |
|
Electronic equipment |
SPS-5B radar, SQS-11A sonar |
|
Complement |
70 |
Project history: Authorized under the 1954 programme. In effect they were updated versions of the wartime US concept.
Modernizations: None.
Naval service: No significant events.

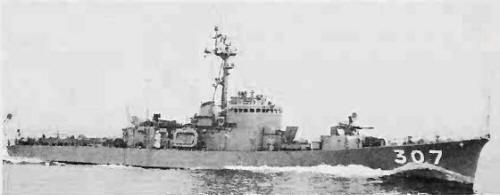

Misago 1970
