JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

ESCORTS

ISHIKARI frigate (1981)

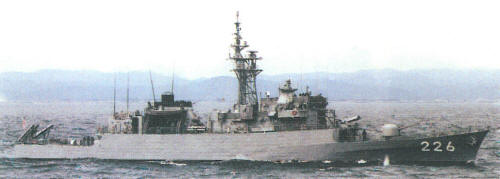

Ishikari 2000

Name No Yard No Builder Laid down Launched Comp Fate
いしかり [Ishikari] DE226   Mitsui, Tamano 17.5.1979 18.3.1980 28.3.1981 stricken 10.2007



Displacement standard, t

1200

Displacement full, t

1450

Length, m

84.5

Breadth, m

10.0

Draught, m

3.50 mean hull

No of shafts

2

Machinery

CODOG: 1 Kawasaki-Rolls-Royce Olympus TM-3B gas turbine / 1 Mitsubishi 6DRV35/44 diesel

Power, h. p.

28390 / 5000

Max speed, kts

25

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)

Armament

2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 3 - 324 type 68 TT, 1 x 4 - 375 type 71 ASWRL

Electronic equipment

OPS-19B, OPS-28, FCS-2-21B radars, OQS-4 (SQS-36D(J)) sonar, NOLQ-6C, OLT-3, OLR-9B ECM suites, 2x Mk 36 SRBOC decoy RL, OYQ-5 CCS

Complement

90



Project history: Two units of the Ishikari class were originally authorised, one in 1977-78 and the second n 1979-80, but only one was built. As many as twenty were planned. This design was smaller and less sophisticated than the preceding Chikugo class, but too much seems to have been attempted on the displacement - hence the curtailment of the programme, and the evolution of the Yubari design.

Modernizations: None.

Naval service: No significant events.

Ishikari 2003
