Ikazuchi 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| いかづち [Ikazuchi] | DE202 | Kawasaki, Kobe | 18.12.1954 | 6.9.1955 | 29.5.1956 | hulk 3.1976 | |
| いなづま [Inazuma] | DE203 | Mitsui, Tamano | 25.12.1954 | 4.8.1955 | 5.3.1956 | hulk 3.1977 |
|
Displacement standard, t |
1080 |
|
Displacement full, t |
1300 |
|
Length, m |
88.0 oa 87.5 pp |
|
Breadth, m |
8.70 |
|
Draught, m |
3.10 max |
|
No of shafts |
2 |
|
Machinery |
DE202: 2 Mitsubishi diesels DE203: 2 Mitsui diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 5500(15) |
|
Armament |
2 x 1 - 76/50 Mk 22, 2 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 15 ASWRL, 8 DCT, 1 DCR |
|
Electronic equipment |
OPS-2, OPS-3 radars, QHBa, QDA sonars |
|
Complement |
160 |
Project history: Both units were authorized under the 1953 Programme as two further 'B type' escort vessels, powered by diesels. All weapons and electronics were US produced. Due to projected vibrations from the diesels, mild steel plates were used and an aluminium alloy was employed in the superstructure.
Modernizations: 1959, both: - 2 x 1 - 76/50, 1 x 2 - 40/60, 4 DCT, 1 DCR; + 2 x 1 - 76/50 Mk 34, Mk 34 radar
Naval service: No significant events.

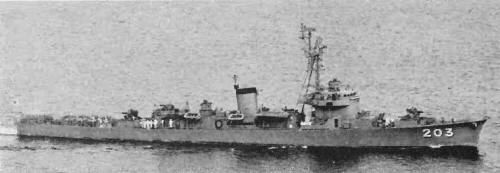

Inazuma 1967
