Hayabusa 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| はやぶさ [Hayabusa] | PC308 | Mitsubishi, Nagasaki | 5.1956 | 20.11.1956 | 6/1957 | yacht 10.1975 |
|
Displacement standard, t |
370 |
|
Displacement full, t |
~410 |
|
Length, m |
58.0 |
|
Breadth, m |
7.80 |
|
Draught, m |
2.00 |
|
No of shafts |
3 |
|
Machinery |
CODAG: 2 Mitsui - Burmeister & Wain 1222VBU-34V diesels, 1 Mitsubishi MUK-1 gas turbine |
|
Power, h. p. |
4000 + 5000 = 9000 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCT, 2 DCR |
|
Electronic equipment |
SPS-5B radar, SQS-11A sonar |
|
Complement |
75 |
Project history: Authorized under the 1954 programme, Hayabusa had a unique machinery arrangement with a gas turbine on the centre shaft.
Modernizations: 1972: gas turbine was removed (4000hp, 20kts).
Naval service: She was converted to a yacht (ASY91) at Yokohama Yacht Co in 1977-78, when she was disarmed and new enlarged superstructure added. Painted white overall, she was deleted in 1987.

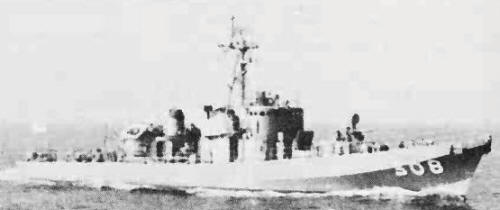

Hayabusa 1972
