JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

ESCORTS

ABUKUMA frigates (1989 - 1993)

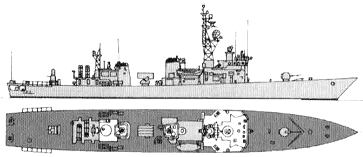

Abukuma 2000

Name No Yard No Builder Laid down Launched Comp Fate
あぶくま [Abukuma] DE229   Mitsui, Tamano 17.3.1988 21.12.1988 12.12.1989 in service (2019)
じんつう [Jintsu] DE230   Hitachi, Maizuru 14.4.1988 31.1.1989 28.2.1990 in service (2019)
おおよど [Oyodo] DE231   Mitsui, Tamano 8.3.1989 19.12.1989 23.1.1991 in service (2019)
せんだい [Sendai] DE232   Sumitomo, Uraga 14.4.1989 26.1.1990 15.3.1991 in service (2019)
ちくま [Chikuma] DE233   Hitachi, Maizuru 14.2.1991 22.1.1992 24.2.1993 in service (2019)
とね [Tone] DE234   Sumitomo, Uraga 8.2.1991 6.12.1991 8.2.1993 in service (2019)



Displacement standard, t

2050

Displacement full, t

2550

Length, m

109.0

Breadth, m

13.4

Draught, m

3.80 hull

No of shafts

2

Machinery

CODOG: 2 Kawasaki-Rolls-Royce Spey SM-1A gas turbines / 2 Mitsubishi S12U MTK diesels

Power, h. p.

27000 / 6000

Max speed, kts

27

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)

Armament

2 x 4 Harpoon SSM (8 RGM-84C), 1 x 8 ASROC ASuR (8 RUR-5), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 6 - 20/76 Mk 15 Phalanx, 2 x 3 - 324 HOS-301 TT

Electronic equipment

OPS-14C, OPS-28D, FCS-2-21, Mk 90 radars, OQS-8 sonar, NOLQ-6C, OLT-3 ECM suites, 2x SRBOC Mk 36 decoy RL, OYQ-6 CCS

Complement

120



Project history: A much larger and more capable class of escorts, comparable to the earlier smaller destroyers. Two ordered in successive estimates 1987-80. Fitted for towed-array sonar but never carried.

Modernizations: late 1990s, both, to reduce topweight: - 2 x 2 Harpoon SSM (2 x 2 totally)

2010s, some: - NOLQ-6C ECM suite; + NOLR-8 ECM suite

Naval service: No significant events.

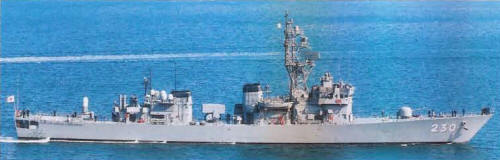

Jintsu 2008
