Yugumo 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 夕雲 [Yugumo] | Maizuru K K | 6/1940 | 16.3.1941 | 12.1941 | sunk 7.10.1943 | ||
| 秋雲 [Akigumo] | Uraga, Tokyo | 7/1940 | 11.4.1941 | 12/1941 | sunk 11.4.1944 | ||
| 風雲 [Kazegumo] | Uraga, Tokyo | 12/1940 | 26.9.1941 | 3.1942 | sunk 8.6.1944 | ||
| 巻雲 [Makikumo] | Fujinagata, Osaka | 12/1940 | 5.11.1941 | 3.1942 | sunk 1.2.1943 | ||
| 巻波 [Makinami] | Maizuru K K | 4/1941 | 27.12.1941 | 8.1942 | sunk 25.11.1943 | ||
| 高波 [Takanami] | Uraga, Tokyo | 5/1941 | 16.3.1942 | 8.1942 | sunk 1.12.1942 | ||
| 長波 [Naganami] | Fujinagata, Osaka | 4/1941 | 5.3.1942 | 6.1942 | sunk 11.11.1944 | ||
| 玉波 [Tamanami] | Fujinagata, Osaka | 3/1942 | 20.12.1942 | 4.1943 | sunk 7.7.1944 | ||
| 凉波 [Suzunami] | Uraga, Tokyo | 3/1942 | 12.3.1943 | 7.1943 | sunk 11.11.1943 | ||
| 大波 [Onami] | Fujinagata, Osaka | 11/1941 | 31.8.1942 | 12/1942 | sunk 25.11.1943 | ||
| 藤波 [Fujinami] | Fujinagata, Osaka | 8/1942 | 20.4.1943 | 7/1943 | sunk 27.10.1944 | ||
| 岸波 [Kishinami] | Uraga, Tokyo | 8/1942 | 19.8.1943 | 12/1943 | sunk 4.12.1944 | ||
| 早波 [Hayanami] | Maizuru K K | 1/1942 | 19.12.1942 | 7/1943 | sunk 7.6.1944 | ||
| 清波 [Kiyonami] | Uraga, Tokyo | 10/1941 | 17.8.1942 | 1/1943 | sunk 20.7.1943 | ||
| 沖波 [Okinami] | Maizuru K K | 8/1942 | 18.7.1943 | 12/1943 | sunk 13.11.1943 | ||
| 浜波 [Hamanami] | Maizuru K K | 4/1942 | 18.4.1943 | 10/1943 | sunk 11.11.1944 | ||
| 朝霜 [Asashimo] | Fujinagata, Osaka | 1/1943 | 18.7.1943 | 11/1943 | sunk 7.4.1945 | ||
| 清霜 [Kiyoshimo] | Uraga, Tokyo | 3/1943 | 29.2.1944 | 5/1944 | sunk 26.12.1944 | ||
| 早霜 [Hayashimo] | Maizuru K K | 1/1943 | 11.1943 | 2/1944 | sunk 26.10.1944 | ||
| 秋霜 [Akishimo] | Fujinagata, Osaka | 5/1943 | 5.12.1943 | 3/1944 | sunk 13.11.1944 |
|
Displacement standard, t |
2077 |
|
Displacement full, t |
2650 |
|
Length, m |
111.6 pp 117.0 wl 119.2 oa |
|
Breadth, m |
10.8 |
|
Draught, m |
3.76 |
|
No of shafts |
2 |
|
Machinery |
2 sets Kampon geared steam turbines, 3 Kampon boilers |
|
Power, h. p. |
52000 |
|
Max speed, kts |
35 |
|
Fuel, t |
oil 500 |
|
Endurance, nm(kts) |
5000(18) |
|
Armament |
Yugumo, Akigumo, Kazegumo, Makikumo, Makinami, Takanami, Naganami, Onami: 3 x 2 - 127/50 3-shiki, 2 x 2 - 25/60 96-shiki, 2 x 4 - 610 TT (16), 4 DCT (36) Tamanami, Suzunami, Fujinami, Kishinami, Hayanami, Kiyonami, Okinami, Hamanami: 3 x 2 - 127/50 3-shiki, 3 x 2 - 25/60 96-shiki, 2 x 4 - 610 TT (16), 4 DCT (36) Asashimo, Kiyoshimo, Hayashimo, Akishimo: 2 x 2 - 127/50 3-shiki, 4 x 3 - 25/60 96-shiki, 1 x 2 - 25/60 96-shiki, 2 x 4 - 610 TT, 4 DCT (36) |
|
Electronic equipment |
Yugumo, Akigumo, Kazegumo, Makikumo, Makinami, Takanami, Naganami, Onami: 93-shiki sonar Tamanami, Suzunami, Fujinami, Kishinami, Hayanami, Kiyonami, Okinami, Hamanami, Asashimo, Kiyoshimo, Hayashimo, Akishimo: 2-shiki 2-go radar, 93-shiki sonar |
|
Complement |
228 |
Project history: Design of Yugumo was formed on the basis of Kagero class and differed from them rather slightly: the hull has been lengthened and guns were placed in new mounts ensuring 75° elevation angle.
They were ordered under Programmes of 1939 (12 ships) and 1941 (16 ships). Eight more ships were provided by the additional Programme of 1942, but their building was abandoned, as well as also of last eight ships of 1941 Programme, because of shortage of materials, and orders for Umigiri, Yamagiri, Tanigiri, Kawagiri, Taekaze, Kiyokaze, Satokaze and Murakaze were cancelled.
Modernizations: 1943, Yugumo, Akigumo, Kazegumo, Makinami, Naganami, Onami: + 1 x 2 - 25/60 96-shiki, 2-shiki 2-go radar
1944, Akigumo, Kazegumo, Naganami, Tamanami, Fujinami, Kishinami, Hayanami, Hamanami: - 1 x 2 - 127/50 (No 2), 2 x 2 - 25/60, 8 spare torpedoes; + 4 x 3 - 25/60 96-shiki
mid-1944, most survived destroyers: + 12 x 1 - 25/60 96-shiki, 4 x 1 - 13.2/76, 3-shiki 1-go radar
mid-1944, some survived destroyers: - 1 x 2 - 127/50 (No 3), 1 x 2 - 25/60; + 1 x 2 - 127/40 89-shiki, 4 x 1 - 13.2/76
Naval service: Takanami 30.11.1942 was hard damaged in battle at Tassafaronga by gunfire of US heavy cruisers and 1.12.1942 foundered in 10nm SW off Sawo (Solomons). Makikumo 29.11.1942 was damaged in Solomons area by US Army aircraft, 1.2.1943 she was mined SW off Sawo and finished by torpedo from destroyer Yugumo. Kiyonami 20.7.1943 was sunk NW off Kolombangara by US Army aircraft. Yugumo 7.10.1943 was sunk NW off Vella-Lavella (Solomons) by US destroyers Chevalier and Selfridge. Suzunami 11.11.1943 was sunk at Rabaul by US carrier aircraft. Onami and Makinami 25.11.1943 are sunk off Bougainville by US destroyers Charles Ausburne, Claxton, Dyson and Spence. Akigumo 11.4.1944 was sunk in sea Sulu by US submarine Redfin. Hayanami 7.6.1944 was sunk off Borneo by US submarine Harder. Kazekumo 8.6.1944 was sunk off Mindanao by US submarine Hake. Tamanami 7.7.1944 was sunk W off Manila by US submarine Mingo. Hayashimo 26.10.1944 was damaged by US carrier aircraft, ran aground at SE coast of Mindoro, 12.11.1944 she was abandoned. Fujinami 27.10.1944 was sunk in Sibuyan sea by US carrier aircraft. Hamanami 11.11.1944 was sunk in Omrock Bay (Philippines) by US carrier aircraft. Naganami 11.11.1943 was hard damaged at Rabaul by US air torpedo, 11.11.1944 she was sunk in Omrock Bay by US carrier aircraft. Akishimo 13.11.1944 was sunk at Cavite (near Manila) by US carrier aircraft. Okinami 13.11.1944 was sunk W off Manila by US carrier aircraft. Kishinami 4.12.1944 was sunk SW off Manila by US submarine Flasher. Kiyoshimo 26.12.1944 was damaged S off Manila by US Army aircraft and this day sunk by US MTB ÐÒ223. Asashimo 7.4.1945 was sunk SW off Nagasaki by US carrier aircraft.

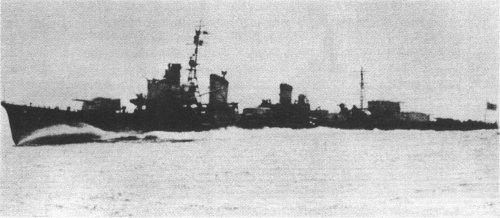

Hayanami
