JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

TORPEDO SHIPS

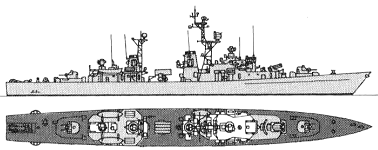

YAMAGUMO destroyers (1966 - 1978)

Asagumo 1968

Aokumo 1980

Name No Yard No Builder Laid down Launched Comp Fate
やまぐも [Yamagumo] DD113, 6.1991- TV3506   Mitsui, Tamano 23.3.1964 27.2.1965 29.1.1966 TS 6.1991, stricken 1995
まきぐも [Makigumo] DD114, 6.1991- TV3507   Uraga, Yokosuka 10.6.1964 26.7.1965 19.3.1966 TS 6.1991, stricken 1995
あさぐも [Asagumo] DD115, 10.1993- ASU7018   Maizuru Jukogyo, Maizuru 24.6.1965 25.11.1966 29.8.1967 TS 10.1993, stricken 1998
あおくも [Aokumo] DD119, 3.1999- TV3512   Sumitomo, Uraga 2.10.1970 30.3.1972 25.11.1972 TS 3.1999, stricken 2003
あきぐも [Akigumo] DD120, 6.2000- TV3514   Sumitomo, Uraga 7.7.1972 23.10.1973 24.7.1974 TS 6.2000, stricken 2005
ゆうぐも [Yugumo] DD121   Sumitomo, Uraga 4.2.1976 31.5.1977 24.3.1978 stricken 2005



Displacement standard, t

2100

Displacement full, t

2700

Length, m

114.9

Breadth, m

11.8

Draught, m

4.00 max

No of shafts

2

Machinery

DD113, 114: 6 Mitsui diesels

DD115, 119-121: 6 Mitsubishi diesels

Power, h. p.

26500

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts) 7000(20)

Armament

1 x 8 ASROC ASuR (8 RUR-5A), 2 x 2 - 76/50 Mk 33, 2 x 3 - 324 TT, 1 x 4 - 375 Type 71 ASWRL

Electronic equipment

DD113, 114: OPS-11, OPS-17, SPG-34, SPG-35 radars, SQS-23, SQS-35(J) sonars, NOLR-1B ECM suite

DD115: OPS-11, OPS-17, SPG-34, SPG-35 radars, SQS-23 sonar, NOLR-1B ECM suite

DD119: OPS-11, OPS-17, SPG-34, SPG-35 radars, OQS-3 sonar, NOLR-1B ECM suite

DD120, 121: OPS-11, OPS-17, SPG-34, SPG-35 radars, OQS-3, SQS-35(J) sonars, NOLR-6 ECM suite

Complement

210



Project history: The Yamagumo class carried an impressive ASW armament, and being diesel-powered, the ships have a small complement for their size and potential. They were classified as 'escort destroyers' (DDK). Originally, Yugumo was to have been the lead ship of a new class. The fact this last unit was laid down 12 years after the first reflects well upon the success of the design. They were authorised under 1962 Programme (DD113), 1963 (DD114), 1964 (DD115), 1965 (DD119), 1967 (DD120, 121). Yamagumo and Makigumo had a raised stern, which housed a VDS; the other units received the VDS during construction and, therefore, had a flat stern.



Modernizations: 1991, Yamagumo, Makigumo: received a lecture room under the ASROC launcher and a chart room added on the signal deck.

Naval service: Five ships were later transferred to Fleet Training and Development Command as Special Use Auxiliary (ASU) and training vessels (TV).

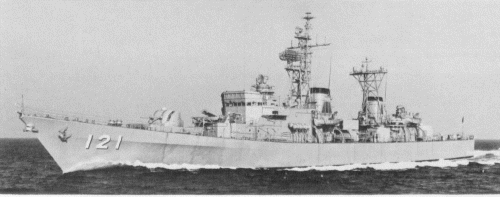

Yugumo 1979

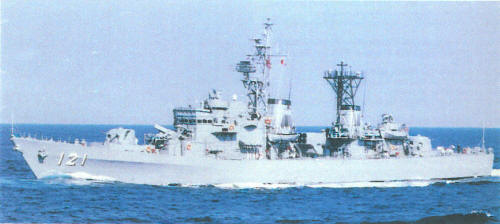

Yugumo 2003
