Umikaze 1920
8-go 1930
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 海風 [Umikaze], 1930- 第7号掃海艇 [7-go] | Maizuru K K | 11.1909 | 10.10.1910 | 9.1911 | minesweeper 1930, sold 1936 | ||
| 山風 [Yamakaze], 1930- 第8号掃海艇 [8-go] | 209 | Mitsubishi, Nagasaki | 6.1909 | 21.1.1911 | 10.1911 | minesweeper 1930, sold 1936 |
|
Displacement normal, t |
1030 |
|
Displacement full, t |
1150 |
|
Length, m |
94.5 pp 98.5 oa |
|
Breadth, m |
8.50 |
|
Draught, m |
2.70 |
|
No of shafts |
3 |
|
Machinery |
3 Parsons steam turbines, 8 Kampon boilers |
|
Power, h. p. |
20500 |
|
Max speed, kts |
33 |
|
Fuel, t |
coal 250 + oil 178 |
|
Armament |
Umikaze: 2 x 1 - 120/40 41-shiki, 5 x 1 - 76/40 41-shiki, 2 x 2 - 450 TT Yamakaze: 2 x 1 - 120/40 41-shiki, 5 x 1 - 76/40 41-shiki, 3 x 1 - 450 TT |
|
Complement |
140 |
Project history: First oceangoing destroyers of new generation, are built under FY1907 Programme. Building was delayed because of a delay with delivery of turbines made by Mitsubishi under Parsons license. At the moment of designing they were one of the strongest in the world, however have appeared too expensive for large series.
Modernizations: 1930, both: were converted to minesweepers. They were fully rearmed with 1 x 1 - 120/40 41-shiki, 4 x 1 - 76/40 3-shiki, mechanical minesweeping gear. A half of boilers was removed, engine power fell to 11000hp and maximal speed to 24kts.
Naval service: In the First World War beginning both destroyers participated in chase for Spee squadron.

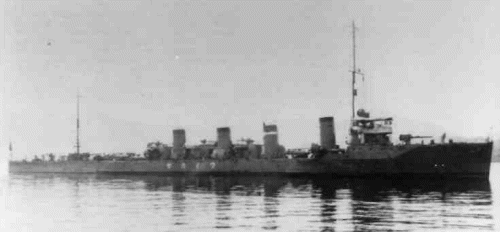

Umikaze
Many thanks to Wolfgang Stöhr for additional information on this page.
