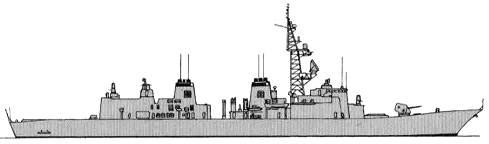

Takanami 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| たかなみ [Takanami] | DD110 | Sumitomo, Uraga | 25.4.2000 | 26.7.2001 | 12.3.2003 | in service (2019) | |
| おおなみ [Onami] | DD111 | Mitsubishi, Nagasaki | 17.5.2000 | 20.9.2001 | 13.3.2003 | in service (2019) | |
| まきなみ [Makinami] | DD112 | IHI, Tokyo | 17.7.2001 | 8.8.2002 | 18.3.2004 | in service (2019) | |
| さざなみ [Sazanami] | DD113 | Mitsubishi, Nagasaki | 3.4.2002 | 29.8.2003 | 16.2.2005 | in service (2019) | |
| すずなみ [Suzunami] | DD114 | IHI, Tokyo | 24.9.2003 | 26.8.2004 | 16.2.2006 | in service (2019) |
|
Displacement standard, t |
4650 |
|
Displacement full, t |
6300 |
|
Length, m |
145.0 wl 151.0 oa |
|
Breadth, m |
17.4 |
|
Draught, m |
5.30 |
|
No of shafts |
2 |
|
Machinery |
COGAG: 2 General Electric - IHI LM-2500 gas turbines + 2 Kawasaki - Rolls-Royce Spey SM-1C gas turbines |
|
Power, h. p. |
33000 + 27000 = 60000 |
|
Max speed, kts |
30 |
|
Fuel, t |
gas turbine oil |
| Endurance, nm(kts) | 4500(24) |
|
Armament |
2 x 4 SSM-1B SSM (8 SSM-1B), 4 x 8 Sea Sparrow SAM / x4 ESSM SAM / ASROC ASuR VLS (32 RIM-7 / x4 RIM-162 / RUM-139), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 HOS-302 TT, 1 helicopter (SH-60K Seahawk) |
|
Electronic equipment |
OPS-20, OPS-28D, OPS-24B, 2x FCS-2-31B, 2x Mk 90 radars, OQS-5, OQR-2 sonars, NOLQ-3, NOLR-8 ECM suites, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-9 CCS |
|
Complement |
176 |
Project history: Funding approved for first two in FY 98 and the third in FY 99; DD 113 was approved in FY 01, DD 114 in FY 02. Improved version of the Murasame class.
Propulsion plant duplicates that of the preceding Murasame class, with a consequent slight loss in maximum speed.
Fitted with OYQ-9 combat data system and equipped with Link 11 datalink capability. Taking advantage of the larger hull, the ships mount a larger gun than the Murasame class; they have a Mk 41 vertical missile launch group with twice as many cells but no Mk 48 launch system cells; this permits greater versatility in loadouts. The U.S. SQQ-28 (ORQ-1) helicopter-deployed sonobuoy datalink is fitted. May have two 12.7mm or 20mm guns and night-vision equipment to detect and deter infiltration craft.
Modernizations: None.
Naval service: No significant events.

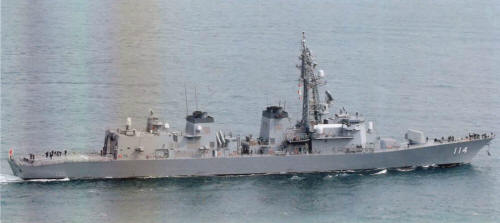

Suzunami 2008
