JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

TORPEDO SHIPS

TACHIKAZE missile destroyers (1976 - 1982)

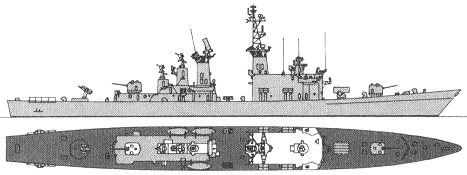

Tachikaze 1980

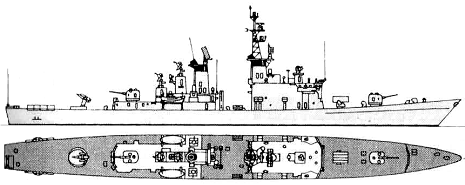

Tachikaze 2000

Name No Yard No Builder Laid down Launched Comp Fate
たちかぜ [Tachikaze] DDG168   Mitsubishi, Nagasaki 19.6.1973 17.12.1974 26.3.1976 stricken 1.2007
あさかぜ [Asakaze] DDG169   Mitsubishi, Nagasaki 27.5.1976 15.10.1977 27.3.1979 stricken 3.2008
さわかぜ [Sawakaze] DDG170   Mitsubishi, Nagasaki 14.9.1979 4.6.1981 30.3.1983 stricken 6.2010



Displacement standard, t

3850

Displacement full, t

4800

Length, m

143.0

Breadth, m

14.3

Draught, m

4.60 max

No of shafts

2

Machinery

2 sets Mitsubishi geared steam turbines, 2 Mitsubishi boilers

Power, h. p.

70000

Max speed, kts

32

Fuel, t

oil

Endurance, nm(kts)

Armament

168, 169: 1 x 1 Standard SM-1MR SAM (40 RIM-66), 1 x 8 ASROC ASuR (16 RUR-5), 2 x 1 - 127/54 Mk 42, 2 x 3 - 324 type 68 TT

170: 1 x 1 Harpoon SSM / Standard SM-1MR SAM (4 RGM-84, 36 RIM-66), 1 x 8 ASROC ASuR (16 RUR-5), 2 x 1 - 127/54 Mk 42, 2 x 3 - 324 type 68 TT

Electronic equipment

168: OPS-16D, SPS-52B, SPG-51C, FCS-1A radars, OQS-3 sonar, NOLR-5 ECM suite, SLQ-25 Nixie torpedo decoy, OYQ-1 CCS

169: OPS-11, OPS-18, SPS-52B, SPG-51C, FCS-1A radars, OQS-3 sonar, NOLQ-1 ECM suite, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-2 CCS

170: OPS-11, OPS-28, SPS-52C, SPG-51C, FCS-2-21 radars, OQS-4(I) sonar, NOLR-5 ECM suite, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-4 CCS

Complement

277



Project history: The Tachikaze class greatly improved the MSDFs anti-aircraft capabilities. The ships were fitted with progressively more advanced combat data systems. The propulsion plant was identical with that fitted in the Haruna class.



Modernizations: 1980, Tachikaze: + OPS-11 radar

1984, Tachikaze, Asakaze: - 1 x 1 Standard SM-1MR SAM (40 RIM-66); + 1 x 1 Harpoon SSM / Standard SM-1MR SAM (4 RGM-84, 36 RIM-66), 2 x 6 - 20/76 Mk 15 Phalanx, 2x Mk 90 radars, OLR-9B ECM suite

1987, Sawakaze: + 2 x 6 - 20/76 Mk 15 Phalanx, 2x Mk 90 radars, OLR-9B ECM suite

1986, Tachikaze: - NOLR-5 ECM suite; + NOLR-6, OLT-3 ECM suites, 4x Mk 36 SRBOC decoy RL

1989, Tachikaze: - OYQ-1 CCS; + OYQ-1B CCS

1990, Asakaze: - OYQ-2 CCS; + OYQ-2B CCS

1992-1994, all: + OPS-20 radar

1998, Tachikaze: - 1 x 1 - 127/54 (aft)

Naval service: Tachikaze became flagship of the Fleet Escort Force in 1998, aft 127mm gun was replaced by deckhouse for additional accommodations.

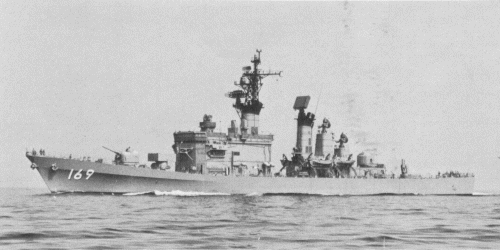

Asakaze 1980

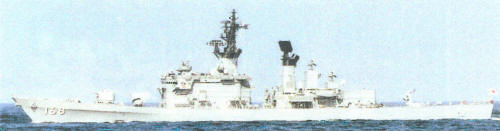

Tachikaze 2003

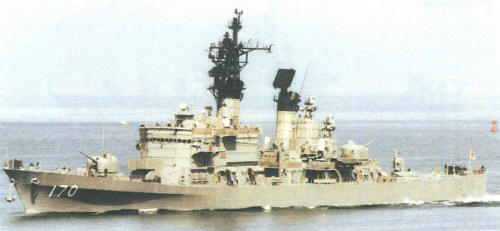

Sawakaze 2003
