IMPERIAL JAPANESE NAVY (JAPAN)

TORPEDO SHIPS

SATSUKI destroyer (1902/1905)

Satsuki 1905

Name No Yard No Builder Laid down Launched Comp Fate
皐月 [Satsuki] (ех-Бедовый [Bedovyy])     Nevskiy Wks, St. Petersburg, Russia 1900 4.5.1902 10/1902 // 6.1905 target 1913



Displacement normal, t

350

Displacement full, t

480

Length, m

64.0

Breadth, m

6.40

Draught, m

2.59 max

No of shafts

2

Machinery

2 VTE, 4 Yarrow boilers

Power, h. p.

5700

Max speed, kts

26

Fuel, t

coal 80

Endurance, nm(kts) 1200(12)

Armament

1 x 1 - 75/48 Canet, 5 x 1 - 47/40 3pdr Hotchkiss, 1 - 381 TT (bow), 2 x 1 - 381 TT

Complement

75

Project history: Russian destroyer of Laird design, captured 28.5.1905 by destroyers Sazanami and Kagero S of Uldshin after Tsushima battle.

Modernizations: 1905: - 1 - 381 TT (bow)

1906: - 1 x 1 - 75/50, 2 x 1 - 381 TT; + 2 x 1 - 450 TT; old boilers were replaced by 4 Miyabara.

Naval service: Used as target until 1922.

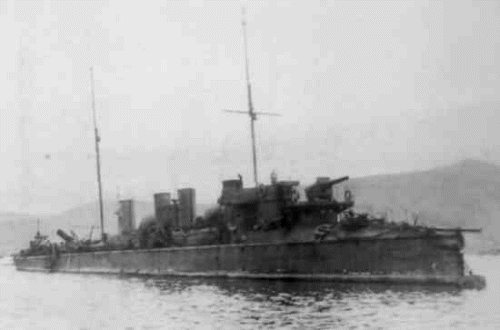

Satsuki
