JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

TORPEDO SHIPS

HATSUYUKI destroyers (1982 - 1987)

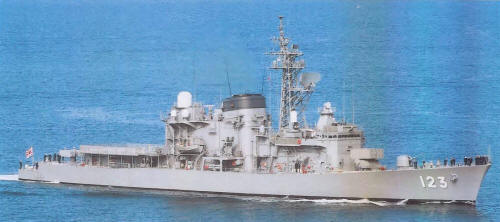

Shirayuki 2000

Name No Yard No Builder Laid down Launched Comp Fate
はつゆき [Hatsuyuki] DD122   Sumitomo, Uraga 14.3.1979 7.11.1980 23.3.1982 stricken 6.2010
しらゆき [Shirayuki] DD123, 3.2011- TV3517   Hitachi, Maizuru 3.12.1979 4.8.1981 8.2.1983 TS 3.2011, stricken 4.2016
みねゆき [Mineyuki] DD124   Mitsubishi, Nagasaki 7.5.1981 19.10.1982 26.1.1984 stricken 3.2013
さわゆき [Sawayuki] DD125   IHI, Tokyo 22.4.1981 21.6.1982 15.2.1984 stricken 4.2013
はまゆき [Hamayuki] DD126   Mitsui, Tamano 4.2.1981 27.5.1982 18.11.1983 stricken 3.2012
いそゆき [Isoyuki] DD127   IHI, Tokyo 23.1.1982 19.9.1983 23.1.1985 stricken 3.2014
はるゆき [Haruyuki] DD128   Sumitomo, Uraga 11.3.1982 6.9.1983 14.3.1985 stricken 3.2014
やまゆき [Yamayuki] DD129, 4.2016- TV3519   Hitachi, Maizuru 25.2.1983 10.7.1984 3.12.1985 TS 4.2016, in service (2019)
まつゆき [Matsuyuki] DD130   IHI, Tokyo 7.4.1983 25.10.1984 19.3.1986 in service (2019)
せとゆき [Setoyuki] DD131, 3.2012- TV3518   Mitsui, Tamano 16.1.1984 3.7.1985 11.12.1986 TS 3.2012, in service (2019)
あさゆき [Asayuki] DD132   Sumitomo, Uraga 22.12.1983 16.10.1985 20.2.1987 in service (2019)
しまゆき [Shimayuki] DD133, 3.1999- TV3513   Mitsubishi, Nagasaki 8.5.1984 29.1.1986 7.2.1987 in service (2019)



Displacement standard, t

122-128: 2950

129-132: 3050

Displacement full, t

122-128: 3700

129-132: 3800

Length, m

126.0 wl 131.7 oa

Breadth, m

13.7

Draught, m

122-128: 4.10 hull

129-132: 4.30 hull

No of shafts

2

Machinery

COGOG: 2 Kawasaki - Rolls-Royce Olympus TM-3B gas turbines / 2 Tyne RM-1C gas turbines

Power, h. p.

50000 / 10000

Max speed, kts

30

Fuel, t

gas turbine oil

Endurance, nm(kts) 5590(20)

Armament

122, 123: 2 x 4 Harpoon SSM (8 RGM-84), 1 x 8 Sea Sparrow SAM (18 RIM-7), 1 x 8 ASROC ASuR (16 RUR-5), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 3 - 324 type 68 TT, 1 helicopter (HSS-2B Sea King)

124-132: 2 x 4 Harpoon SSM (8 RGM-84), 1 x 8 Sea Sparrow SAM (16 RIM-7), 1 x 8 ASROC ASuR (16 RUR-5), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 6 - 20/76 Mk 15 Phalanx, 2 x 3 - 324 type 68 TT, 1 helicopter (HSS-2B Sea King)

Electronic equipment

122, 123: OPS-18-1, OPS-14B, FCS-2-21A, FCS-2-12 radars, OQS-4A sonar, NOLQ-6C, OLT-3 ECM suites, 2x Mk 36 SRBOC decoy RL, type 3 torpedo decoy, OYQ-5 CCS

124-128: OPS-18-1, OPS-14B, FCS-2-21A, FCS-2-12A, 2x Mk 90 radars, OQS-4A sonar, NOLQ-6C, OLT-3 ECM suites, 2x Mk 36 SRBOC decoy RL, type 3 torpedo decoy, OYQ-5 CCS

129, 130: OPS-18-1, OPS-14B, FCS-2-21A, FCS-2-12A, 2x Mk 90 radars, OQS-4A sonar, NOLQ-6C, OLT-3 ECM suites, 2x Mk 36 SRBOC decoy RL, type 3 torpedo decoy, OYQ-6 CCS

131, 132: OPS-18-1, OPS-14B, FCS-2-21A, FCS-2-12C, 2x Mk 90 radars, OQS-4A sonar, NOLQ-6C, OLT-3 ECM suites, 2x Mk 36 SRBOC decoy RL, type 3 torpedo decoy, OYQ-6 CCS

Complement

170



Project history: These units are multi-purpose destroyers with a balanced anti-air, surface and sub-surface capability. The Sea King helicopters were operated on the 'Bear Trap' system. The higher displacement of the later ships is caused by the substitution of steel superstructure for the original aluminium alloy.



Modernizations: 1990, Matsuyuki; 1994, Hatsuyuki, late 1990s, others: + OQR-1 sonar

1992, Shirayuki; 1996, Hatsuyuki: + 2 x 6 - 20/76 Mk 15 Phalanx, 2x Mk 90 radars

1990s, all: + OPS-20 radar

2000s, all: - 1 HSS-2B helicopter; + 1 SH-60 helicopter

Naval service: No significant events.

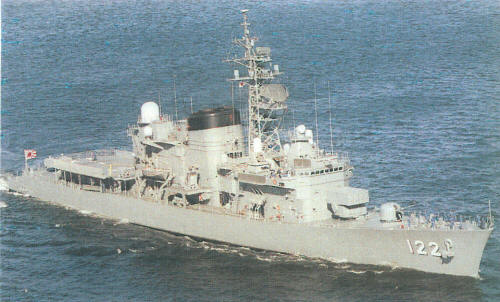

Hatsuyuki 2001

Shirayuki 2008
