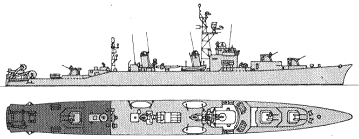

Takanami 1960
Ayanami 1980
Isonami 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| あやなみ [Ayanami] | DD103, 3.1983- ASU7004 | Mitsubishi Zosen, Nagasaki | 20.11.1956 | 1.6.1957 | 12.2.1958 | TS 3.1983, stricken 12.1986 | |
| いそなみ [Isonami] | DD104, 3.1983- TV3502 | Shin-Mitsubishi, Kobe | 14.12.1956 | 30.9.1957 | 14.3.1958 | TS 3.1983, stricken 7.1987 | |
| うらなみ [Uranami] | DD105, 3.1983- ASU7005 | Kawasaki, Tokyo | 1.2.1957 | 29.8.1957 | 27.2.1958 | TS 3.1983, stricken 12.1986 | |
| しきなみ [Shikinami] | DD106, 3.1983- TV3503 | Mitsui Zosen, Tamano | 14.12.1956 | 25.9.1957 | 15.3.1958 | TS 3.1983, stricken 7.1987 | |
| たかなみ [Takanami] | DD110, 3.1985- ASU7009 | Mitsui Zosen, Tamano | 8.11.1958 | 8.8.1959 | 30.1.1960 | TS 3.1985, stricken 3.1989 | |
| おおなみ [Oonami] | DD111, 2.1987- ASU7013 | Ishikawajima HI, Kobe | 20.3.1959 | 13.2.1960 | 29.8.1960 | TS 2.1987, stricken 3.1990 | |
| まきなみ [Makinami] | DD112, 2.1987- ASU7014 | Iono HI, Maizuru | 20.3.1959 | 25.4.1960 | 28.10.1960 | TS 2.1987, stricken 3.1990 |
|
Displacement standard, t |
1720 |
|
Displacement full, t |
2500 |
|
Length, m |
109.0 wl |
|
Breadth, m |
10.7 |
|
Draught, m |
3.70 light |
|
No of shafts |
2 |
|
Machinery |
DD103-105: 2 sets Mitsubishi/Escher-Weiss geared steam turbines, 2 Mitsubishi/Combustion Engineering boilers DD106, 110, 111: 2 sets Mitsubishi/Escher-Weiss geared steam turbines, 2 Hitachi/Babcock & Wilcox boilers DD112: 2 sets Mitsubishi/Escher-Weiss geared steam turbines, 2 Kawasaki Jyuko BD boilers |
|
Power, h. p. |
35000 |
|
Max speed, kts |
32 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 6000(18) |
|
Armament |
DD103-106, 110, 111: 3 x 2 - 76/50 Mk 33, 1 x 4 - 533 TT (8), 2 - 483 TT, 2 x 24 - 178 Hedgehog Mk 15 ASWRL, 2 DCT DD112: 3 x 2 - 76/50 Mk 33, 1 x 4 - 533 TT (8), 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 15 ASWRL, 2 DCT |
|
Electronic equipment |
DD103-106: OPS-1, OPS-2, SPG-34 radars, OQS-12 sonar DD110-112: OPS-1, OPS-15, SPG-34 radars, OQS-14 sonar, BLR-1 ECM suite |
|
Complement |
220 |
Project history: The Ayanami class were designed principally for ASW warfare and unofficially designated DDKs. Four ships were built under the 1955 programme, one under the 1957 and two under the 1958 programmes. The 76mm guns were US Mk 33s but the shields were uniquely Japanese. Later units of the class had a bulwark aft of the hull break. Reload torpedoes for the 533mm tubes were carried in racks on deck, which was standard practice in Japanese destroyers during the war. Ayanami was equipped with eight wash-down systems for removing radio-active fallout.
Modernizations: 1965, Ayanami; 1966, Isonami; 1967, Takanami: + OQA-1 VDS sonar
1976, Isonami, Shikinami: - 1 x 4 - 533 TT (lecture hall was mounted on its place).
Naval service: All ships were later transferred to Fleet Training and Development Command as Special Use Auxiliaries (ASU) and Training Vessels (TV).

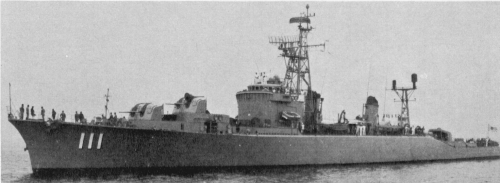

Oonami 1979
