IMPERIAL JAPANESE NAVY (JAPAN)

TORPEDO SHIPS

AMATSUKAZE destroyers (1917)

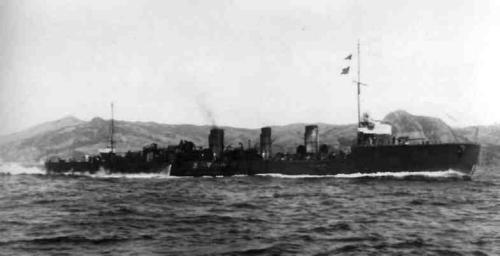

Amatsukaze 1921

Name No Yard No Builder Laid down Launched Comp Fate
天津風 [Amatsukaze]     Kure K K 4.1916 5.10.1916 4.1917 sold 4.1935
磯風 [Isokaze]     Kure K K 4.1916 5.10.1916 2.1917 sold 4.1935
時津風 [Tokitsukaze]     Kawasaki, Kobe 3.1916 27.12.1916 5.1917 hulk 4.1935
浜風 [Hamakaze]     Mitsubishi, Nagasaki 4.1916 30.10.1916 3.1917 sold 4.1935



Displacement normal, t

1227

Displacement full, t

1570

Length, m

94.5 pp 96.9 oa

Breadth, m

8.50

Draught, m

2.80

No of shafts

3

Machinery

Amatsukaze, Tokitsukaze: 3 Curtis steam turbines, 5 Kampon boilers

Isokaze, Hamakaze: 3 Parsons steam turbines, 5 Kampon boilers

Power, h. p.

27000

Max speed, kts

34

Fuel, t

coal 147 + oil 297

Endurance, nm(kts) 4000(15)

Armament

4 x 1 - 120/40 41-shiki, 2 x 1 - 7.7/87, 3 x 2 - 450 TT

Complement

128



  Project history: Design was developed on the basis of destroyer Umikaze, differed by increased engine power and stronger armament. Built under the 1915 Programme. As a whole ships have appeared successful; it is necessary to refer to their lacks only complexity of three-shaft machinery and out-of-date British-origin 120mm guns.



  Modernizations: None.

  Naval service: Tokitsukaze 25.3.1918 has had an accident at shores of Kyushu: she was broken apart and has sunk, but has been salvaged in July, repaired and commissioned again in February, 1920. After discarding three ships have broken up, and Tokitsukaze during long time served as a training hulk. She have handed over on demolition only in March, 1948.

Hamakaze
