HOSHO light aircraft carrier (1922)

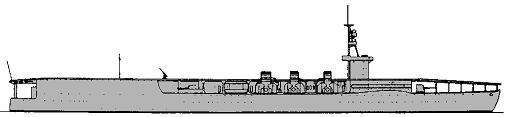

Hosho 1922

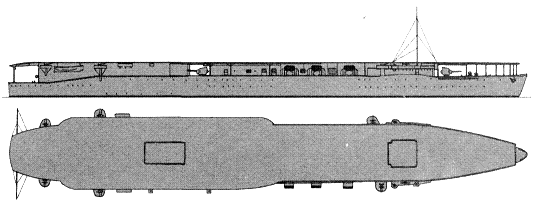

Hosho 1942

Name No Yard No Builder Laid down Launched Comp Fate
鳳翔 [Hosho] (ex-飛龍 [Hiryu])     Asano, Tsurumi / Yokosuka K K 16.12.1919 13.11.1921 16.12.1922 surrendered 9.1945, BU 4.1947


Displacement standard, t

7470

Displacement full, t

9630

Length, m

155.5 pp 165.0 wl 168.1 oa

Breadth, m

18.0 wl 22.7 fd

Draught, m

6.17

No of shafts

2

Machinery

2 Parsons steam turbines, 8 Kampon boilers

Power, h. p.

30000

Max speed, kts

25

Fuel, t

oil 2700, coal 940

Endurance, nm(kts) 8000(15)

Armament

4 x 1 - 140/50 3-shiki, 4 x 1 - 76/40 3-shiki, 2 x 1 - 7.7/80, 26 aircraft (1MF fighters, 2MR recon planes, 1MT1, 2MT/3MT torpedo bombers)

Complement

550

Aircraft facilities (fd - 3,820m², ha - ?m² / ?m³): Flight deck: 168.3x22.7m. Fore hangar, upper aft hangar and lower aft hangar (Length summary: 92m). There were fore (9.0x9.0m) and aft (12.5x7.0m) lifts. Aircraft fuel stowage: ?.

Year fighters recon planes torpedo bombers
1923 7 1MF 4 2MR 6 1MT
1926 9 A1N 3 C1M 3 B1M
7.1937 9 A4N --- 9 B3Y
12.1941 11 A5M4 --- ---
6.1942 --- --- 8 B5N2

Project history: She was laid down as naval tanker, originally named Hiryu. In 1920 the decision on completion of a vessel as an aircraft carrier was accepted. British experts participated in designing. After launch Hosho was towed to Yokosuka N Yd for completion. The planned second sister-ship Shokaku was never laid down in accordance with decisions of Washington conference of 1922. For simplification of aircrafts taking-off flight deck in the fwd quarter has received some angle. Interesting feature of architecture were three funnels placed on the starboard side and capable to be fold on an 90°-angle (to moderate harmful effect of a smoke and air vortexes on aircrafts landing).

Originally Hosho had island on starboard side, but in 1923 it was demounted, and ship has gained flush-deck outline profile which has become characteristic for whole generation of Japanese aircraft carriers. Simultaneously an angle of a fore part of flight deck was eliminated. In 1934-1936 funnels were fixed in horizontal position, flight deck was a little altered, boilers were converted to oil-firing.

Modernizations: 1923: island superstructure was removed, fore part of flight deck was done flat.

1936: - 2 x 1 - 7.7/80; + 6 x 2 - 13.2/76, full displacement increased to 10797 t, funnels were fixed in vertical position.

10/1940: - 2 x 1 - 76/40; + 4 x 2 - 25/60 96-shiki

late 1942: - 4 x 1 - 140/50; + 4 x 2 - 25/60 96-shiki

1944: flight deck was lengthened to 180.8 m, new lifts were fitted (fore: 8.5 x 12.8 m and aft: 13.7 x 11.0 m), funnels were inclined down; - 2 x 1 - 76/40

6/1945: - 5 x 2 - 25/60

Naval service: In 1942, soon after Midway, Hosho was re-rated to training carrier. Hosho was damaged by American carrier aircraft in Kure 28.7.1945. After war some time she was used for repatriation and broken up in 1947.

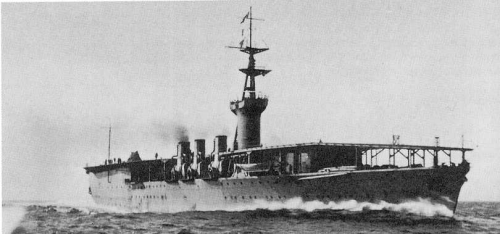

Hosho 1922

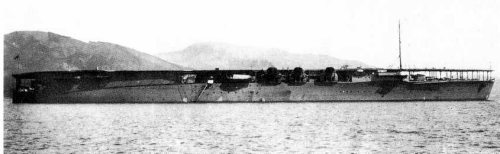

Hosho 1928

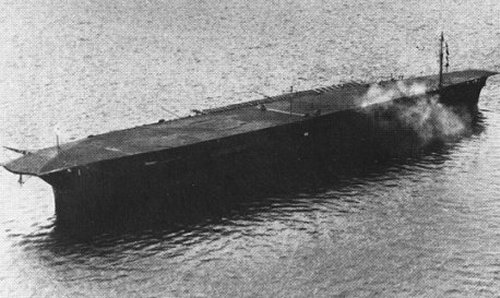

Hosho
