IMPERIAL JAPANESE NAVY (JAPAN)

CRUISERS

ex-Chinese light cruisers (1932-1936/1944)

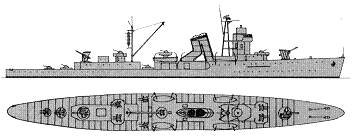

Yasoshima 1944

Name No Yard No Builder Laid down Launched Comp Fate
五百島 [Ioshima] (ex-甯海 [Ning Hai])     Harima Co, Harima 20.2.1931 10.10.1931 31.7.1932 // 28.6.1944 sunk 19.9.1944
八十島 [Yasoshima] (ex-平海 [Ping Hai])     Kiangnan, Shanghai, China 28.6.1931 28.9.1935 18.6.1936 // 10.6.1944 sunk 25.11.1944



Displacement standard, t

2165

Displacement full, t

2500

Length, m

106.7 pp 109.7 oa

Breadth, m

11.9

Draught, m

3.96

No of shafts

Yasoshima: 2

Ioshima: 3

Machinery

Yasoshima: 2 VTE, 4 Kampon boilers

Ioshima: 3 VTE, 2 Kampon boilers

Power, h. p.

9000

Max speed, kts

22.2

Fuel, t

coal 600 + oil 110

Endurance, nm(kts) 5000(12)

Armour, mm

belt: 25, deck: 19

Armament

2 x 1 - 120/45 10-shiki, 5 x 3 - 25/60 96-shiki, 2 DCR (18)

Electronic equipment

2-shiki 2-go radar, 93-shiki sonar

Complement

340

Project history: Former Chinese cruisers (actually big gunboats or sloops) Ming Hai and Ping Hai. The design of these ships was developed by request of Chinese government in Japan. Here also lead Ning Hai was built. Building of Ping Hai was conducted in China with technical assistance of Japan, however after a deterioration of relations between these countries in 1933 "island neighbour" has ceased to render the technical help and it was possible to finish building ship only after attraction of German experts, thus the design has been significantly modified. Formally sister ships had a number of basic differences: for example Ning Hai had three shafts and Ping Hai had two.

During full-scale war which have burst in 1937 between Japan and China both cruisers have quickly enough felt to Japanese hands. 23.9.1937 Ping Hai has been damaged by Japanese aircraft and sunk on shallow water on Yangtze river. Ning Hai, also damaged by Japanese aircraft, 25.9.1937 was partially scuttled on shoal on Yangtze. Late year both ships were captured by occurring Japanese army, and 5.12.1937 they have been enlisted into IJN. In 1938 ships were salvaged and after temporary repair laid up. Only in 1943 "Chineses" have recollected: decision to arrange them as escort flagships was accepted. Thus their armament were completely changed, boilers were converted to oil-firing (on Ning Hai) or replaced by new (Ping Hai). On Ning Hai works have begun in December, 1943, and on Ping Hai in January, 1944.

On June, 1st, 1944, shortly before commission, ships have renamed: loshima (ex-Ning Hai) and Yasoshima (ex-Ping Hai). Original armament consisted of 3x2 140mm/50 guns, 76mm or 88mm AA guns and 2 twin 533mm TTs. As escorts loshima and Yasoshima carried two DP 120mm/45 guns and 5 triple 25mm MGs. ASW armament included 2 DCT and 2 DCR. On September, 25th, 1944 Yasoshima was reclassified from escort to 2nd class cruiser.

Ship protection: Main belt and main deck protected only machinery and consisted of construction steel.

Modernizations: 8.1944, Yasoshima: + 4 x 2 - 25/60 96-shiki, 12 x 1 - 25/60 96-shiki, 8 x 1 - 13.2/76

Naval service: loshima 19.9.1944 was sunk S off Honshu by US submarine Shad. Yasoshima 25.11.1944 was sunk by US carrier aircraft at Luzon coast.

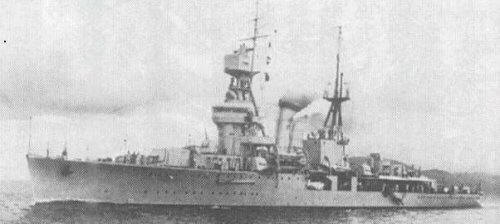

Ioshima
