JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

MARITIME SAFETY AGENCY

YODO patrol craft (2002-2013)

Name No Yard No Builder Laid down Launched Comp Fate
よど [Yodo] PC51   Sumidagawa, Tokyo 13.3.2001 2.10.2001 29.3.2002 in service (2019)
ことびき [Kotobiki] PC52   Sumidagawa, Tokyo 3.7.2002 23.10.2002 27.3.2003 in service (2019)
なち [Nachi], 2015- りゅうおう [Ryuo] PC53   Ishihara, Takasago 3.7.2002 29.1.2003 27.3.2003 in service (2019)
ぬのびき [Nunobiki] PC54   Sumidagawa, Tokyo 3.7.2002 4.12.2002 27.3.2003 in service (2019)
ふどう [Fudo] PC55   Sumidagawa, Tokyo 2011 29.6.2012 21.1.2013 in service (2019)
りゅうせい [Ryusei] PC56   Sumidagawa, Tokyo 2011 17.8.2012 14.2.2013 in service (2019)
たかたき [Takataki] PC57   Niigata SY 2011 8.9.2012 15.2.2013 in service (2019)
あおたき [Aotaki] PC58   Sumidagawa, Tokyo 2011 2012 21.3.2013 in service (2019)
なち [Nachi] PC59   Niigata SY 2011 2012 29.3.2013 in service (2019)
みのお [Minoo] PC60   Nagasaki SY 2011 2012 29.3.2013 in service (2019)



Displacement standard, t

125

Displacement normal, t

190

Length, m

35.0 wl 37.0 oa

Breadth, m

6.70

Draught, m

1.50

No of shafts

2

Machinery

2 diesels

Power, h. p.

5200

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

none

Electronic equipment

radar, e/o detector

Complement



Project history: Principally intended for firefighting and are equipped with firefighting monitors on the bow, atop the pilothouse, and atop the two side-by-side combination mast/stacks.

Modernizations: None.

Naval service: No significant events.

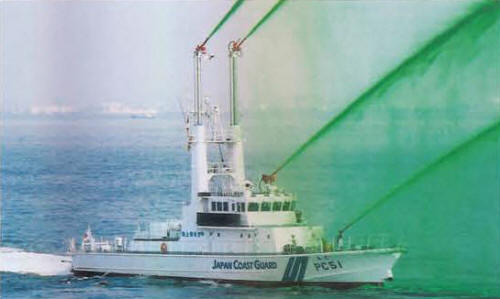

Yodo 2008
