Tokachi 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| とかち [Tokachi] | PS51, 1968- PM51 | Harima, Kure | 11.1953 | 8.5.1954 | 7.1954 | deleted 9.1980 | |
| たつた [Tatsuta] | PS52, 1968- PM52 | Harima, Kure | 9.1954 | deleted 8.1980 |
|
Displacement standard, t |
257 |
|
Displacement full, t |
381 |
|
Length, m |
51.8 |
|
Breadth, m |
6.60 |
|
Draught, m |
2.15 |
|
No of shafts |
2 |
|
Machinery |
2 Ikegai 6MSB31S diesels |
|
Power, h. p. |
1500 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3820(12) |
|
Armament |
1 x 1 - 40/60 Mk 3 |
|
Electronic equipment |
none |
|
Complement |
41 |
Project history: Small patrols of 350t class, later rerated as medium patrols.
Modernizations: None.
Naval service: No significant events.

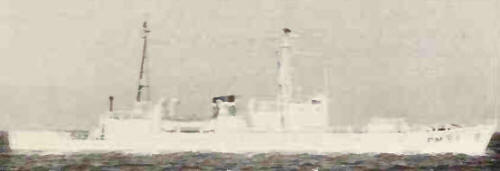

Tokachi 1972
