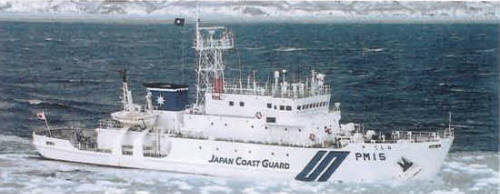

Teshio 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| てしお [Teshio] | PM15 | NKK, Tsurumi | 7.10.1994 | 20.4.1995 | 19.10.1995 | in service (2019) |
|
Displacement standard, t |
563 |
|
Displacement normal, t |
883 |
|
Length, m |
54.9 |
|
Breadth, m |
10.2 wl 10.6 oa |
|
Draught, m |
3.30 mean 4.00 max |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 3 - 20/76 JM-61-MB Sea Vulcan |
|
Electronic equipment |
2x JMA radars |
|
Complement |
35 |
Project history: Icebreaking hull with 5.0m molded depth; able to break 75cm ice by ramming and 55cm ice at 3kts continuous. Hullform is unusual tor an icebreaking hull in having a hard chine amidships and single-curvature hullform over most of the middle portion of the hull. A television surveillance camera is fitted atop the pilothouse.
Modernizations: None.
Naval service: No significant events.
Teshio 2002
