JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

MARITIME SAFETY AGENCY

TESHIO medium patrol vessels (1980-1988)

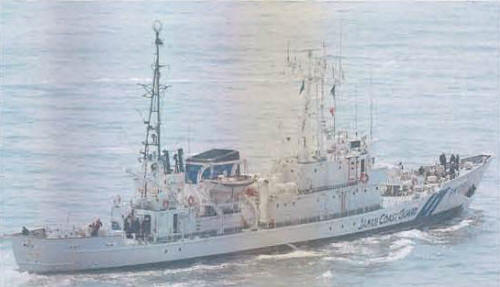

Natsui 2000

Name No Yard No Builder Laid down Launched Comp Fate
てしお [Teshio], 11.1995- なつい [Natsui] PM01   Shikoku DY, Kochi   30.5.1980 30.9.1980 deleted 6.2013
おいらせ [Oirase], 2.2004- きたかみ [Kitakami] PM02   Naikai, Taguma   15.5.1980 29.8.1980 stricken 2.2018
えちぜん [Echizen], 3.2008- びほろ [Bihoro] PM03   Usuki Iron Wks, Usuki   2.6.1980 30.9.1980 deleted 3.2013
とかち [Tokachi] PM04   Narazaki, Muroran   21.11.1980 24.3.1981 stricken 9.2017
ひたち [Hitachi] PM05   Tohoku SY, Shiogama   15.11.1980 19.3.1981 stricken 2.2018
おきつ [Okitsu] PM06   Usuki Iron Wks, Usuki   5.12.1980 17.3.1981 deleted 6.2011
いさづ [Isazu] PM07   Naikai, Taguma   29.10.1981 18.2.1982 stricken 10.2017
ちとせ [Chitose] PM08   Shikoku DY, Kochi   7.7.1981 17.11.1982 in service (2019)
くわの [Kuwano], 2009- まべち [Mabechi] PM09   Naikai, Taguma   8/1981 10.3.1983 stricken 12.2018
そらち [Sorachi], 2018- いさづ [Isazu] PM10   Tohoku SY, Shiogama   27.4.1984 27.9.1984 in service (2019)
ゆうばり [Yubari] PM11   Usuki Iron Wks, Usuki   20.8.1985 28.11.1985 in service (2019)
もとうら [Motoura] PM12   Shikoku DY, Takamatsu   7.8.1986 21.11.1986 in service (2019)
かの [Kano], 2010- いしかり [Ishikari], 2011- むろみ [Muromi], 2015- くろせ [Kurose] PM13   Naikai, Taguma   7.8.1986 13.11.1986 in service (2019)
せんだい [Sendai], 2015- つるみ [Tsurumi], 2016- たかとり [Takatori] PM14   Shikoku DY, Takamatsu   21.1.1988 1.6.1988 in service (2019)



Displacement standard, t

630

Displacement normal, t

01-11, 13, 14: 670

12: 692

Length, m

63.0 pp 67.8 oa

Breadth, m

7.90

Draught, m

2.65

No of shafts

2

Machinery

01-11, 13, 14: 2 Fuji 6S32F diesels

12: 2 Niigata 6M31EX(14) diesels

Power, h. p.

3000

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)

01-11, 13, 14: 3200(16)

12: 3900(16)

Armament

1 x 3 - 20/76 JM-61-MB Sea Vulcan

Electronic equipment

2x JMA 159B radars

Complement

33

Project history: Medium patrols.

Modernizations: None.

Naval service: No significant events.

Kuwano 2005
