| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| たかつき [Takatsuki] | PS108 | Mitsubishi, Shimonoseki | 1991 | 1992 | 23.3.1992 | in service (2019) | |
| のばる [Nobaru], 2015- かつらぎ [Katsuragi] | PS109 | Hitachi, Kanagawa | 8.9.1992 | 27.1.2993 | 22.3.1993 | in service (2019) |
|
Displacement standard, t |
115 |
|
Displacement normal, t |
180 |
|
Length, m |
35.0 |
|
Breadth, m |
6.70 |
|
Draught, m |
1.20 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V396 TB94 diesels |
|
Power, h. p. |
5200 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
radar, e/o detector |
|
Complement |
10 |
Project history: An improved version of the Akagi class incorporating outdrive surface-piercing propulsors. Have infrared surveillance and low-light TV cameras atop the pilothouse.
Modernizations: None.
Naval service: No significant events.

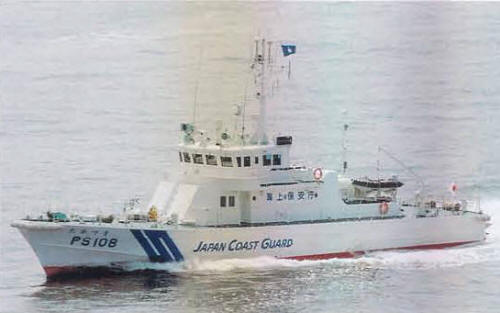

Takatsuki 2005
