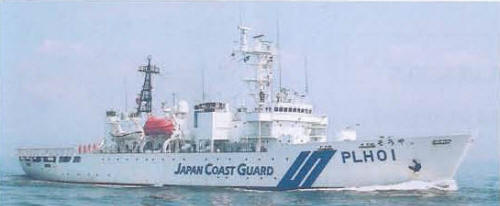

Soya 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| そうや [Soya] | PL01, 12.1985- PLH01 | NKK, Tsurumi | 12.9.1977 | 3.7.1978 | 22.11.1978 | in service (2019) |
|
Displacement standard, t |
3700 |
|
Displacement normal, t |
4089 |
|
Length, m |
98.6 |
|
Breadth, m |
15.6 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
2 NKK-Pielstick 12PC2-5 V400 diesels |
|
Power, h. p. |
15600 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil 650 |
| Endurance, nm(kts) | 5700(18) |
|
Armament |
1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10, 1 helicopter (Bell 212) |
| Electronic equipment | 2x JMA 1596, JMA 1576 radars |
|
Complement |
71 |
Project history: Has icebreaking abilities. The armament is not normally fitted.
Modernizations: None.
Naval service: No significant events.
Soya 2008
