home

fighting ships of the world

JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

MARITIME SAFETY AGENCY

SHIRETOKO large patrol vessels (1978-1982)

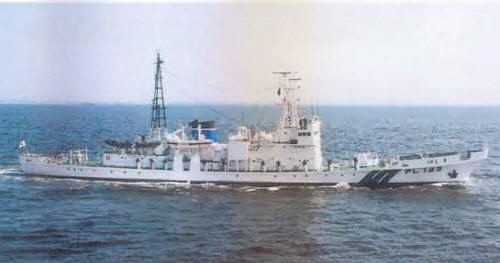

Wakasa 2010

Name No Yard No Builder Laid down Launched Comp Fate
しれとこ [Shiretoko] PL101   Mitsui, Tamano   13.7.1978 8.11.1978 deleted 3.2012
えさん [Esan] PL102   Sumitomo, Oshima   8/1978 16.11.1978 deleted 12.2008
わかさ [Wakasa], 1.2015- くさかき [Kusakaki] PL103   Kawasaki, Kobe   8/1978 29.11.1978 deleted 10.2015
やひこ [Yahiko], 9.1999- しまんと [Shimanto], 10.2004- きい [Kii], 6.2014- あつみ [Atsumi] PL104   Mitsubishi, Shimonoseki   8/1978 16.11.1978 deleted 10.2015
もとぶ [Motobu], 10.2000- おじか [Ojika] PL105   Sasebo DY   8/1978 29.11.1978 collision 20.10.2000, stricken
りしり [Rishiri] PL106   Shikoku DY   27.3.1979 12.9.1979 deleted 3.2006
まつしま [Matsushima] PL107   Thohoku DY   11.4.1979 14.9.1979 deleted 2.2009
いわき [Iwaki] PL108   Naikai, Innoshima   28.3.1979 10.8.1979 deleted 3.2006
しきね [Shikine] PL109   Usuki SY, Usuki   27.4.1979 20.9.1979 deleted 9.2009
するが [Suruga] PL110   Kurushima DY, Onishi   20.4.1979 28.9.1979 deleted 2.2010
れぶん [Rebun] PL111   Narasaki SY, Muroran   6/1979 21.11.1979 deleted 12.2008
ちょうかい [Chokai] PL112   Nipponkai HI, Toyama   6/1979 30.11.1979 deleted 3.2008
あしずり [Ashizuri], 11.1997- のじま [Nojima] PL113   Sanoyasu DY, Oshima   6/1979 31.10.1979 deleted 3.2006
おき [Oki], 11.1997- とさ [Tosa] PL114   Tsuneishi SY, Numakuma   6/1979 16.11.1979 deleted 1.2009
のと [Noto], 1.2015- ようてい [Yotei] PL115   Miho SY, Shimizu   7/1979 30.11.1979 deleted 12.2015
よなくに [Yonakuni] PL116   Hiyashigane SY, Nagasaki   6/1979 31.10.1979 deleted 2.2005
だいせつ [Daisetsu], 4.1988- くだか [Kudaka], 8.1994- くりこま [Kurikoma], 4.2000- いわみ [Iwami], 12.2008- れぶん [Rebun], 12.2013- するが [Suruga] PL117   Hakodate DY   22.8.1979 31.1.1980 deleted 1.2016
しもきた [Shimokita] PL118   Ishikawajima, Tokyo   9/1979 12.3.1980 deleted 3.2012
すずか [Suzuka] PL119   Kanasashi SY, Toyohashi   4.10.1979 7.3.1980 deleted 2.2010
くにさき [Kunisaki] PL120   Koyo DY, Mihara   8.10.1979 29.2.1980 deleted 10.2016
げんかい [Genkai], 2.2005- あまぎ [Amagi] PL121   Oshima SY, Oshima   9/1979 31.1.1980 deleted 2.2008
ごとう [Goto], 12.2008- いわみ [Iwami], 8.2013- いとしま [Itoshima] PL122   Onomichi SY, Onomichi   10/1979 29.2.1980 deleted 10.2015
こしき [Koshiki] PL123   Kasado DY, Kasado   9/1979 25.1.1980 deleted 2.2010
はてるま [Hateruma] PL124   Osaka DY   11/1979 12.3.1980 deleted 2.2008
かとり [Katori] PL125   Tohoku DY, Shiogama   5/1980 17.10.1980 deleted 10.2016
くにがみ [Kunigami], 2.2009- まつしま [Matsushima], 8.2014- おしか [Oshika] PL126   Kanda SY, Kawashiri   28.3.1980 21.10.1980 deleted 1.2016
えとも [Etomo] PL127   Naikai, Innoshima   30.9.1981 17.3.1982 deleted 9.2016
ましゅう [Mashu], 3.1997- あまぎ [Amagi], 2004- よなくに [Yonaguni], 12.2008- えさん [Esan] PL128   Shikoku DY, Takamatsu   14.10.1981 12.3.1982 deleted 9.2016



Displacement standard, t

966 - 974

Displacement normal, t

1350 - 1360

Length, m

73.6 pp 77.8 oa

Breadth, m

9.60

Draught, m

3.42

No of shafts

2

Machinery

101, 103, 107, 108, 110-113, 117, 121, 122, 124, 127: 2 Fuji S40B diesels

102, 104-106, 109, 114-116, 118-120, 123, 125, 126, 128: 2 Niigata 8MA40 diesels

Power, h. p.

7000

Max speed, kts

20

Fuel, t

diesel oil 191

Endurance, nm(kts) 4400(17)

Armament

101-104: 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10

105-117, 119-121, 123: 1 x 1 - 40/60 Mk 3

118, 122, 124-128: 1 x 1 - 35/90 type 87

Electronic equipment JMA 1596, JMA 1576 radars

Complement

41

Project history: Mass-produced development of the Erimo class for 200nm EEZ patrol duties.

Modernizations: None.

Naval service: No significant events.

Koshiki 2008
