JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

MARITIME SAFETY AGENCY

SHIKINAMI patrol craft (1971-1975)

Names

PC54 しきなみ [Shikinami]

PC55 ともなみ [Tomonami]

PC56 わかなみ [Wakanami]

PC57 いせなみ [Isenami]

PC58 たかなみ [Takanami]

PC59 むつき [Mutsuki]

PC60 もちづき [Mochizuki]

PC61 はるづき [Haruzuki]

PC62 きよづき [Kiyozuki]

PC63 うらづき [Urazuki]

PC66 うらなみ [Uranami]

PC67 たまなみ [Tamanami]

PC68 みねぐも [Minegumo]

PC69 きよなみ [Kiyonami]

PC70 おきなみ [Okinami]

PC71 わかぐも [Wakagumo]

PC74 あそゆき [Asoyuki]

Builders

Mitsubishi, Shimonoseki: PC54-56, 58, 61-63, 67-69

Hitachi, Kanagawa: PC57, 59, 60, 66, 70, 71, 74

Commissioned

1971: PC54-56, 58

1972: PC57, 59-62

1973: PC63, 66-69

1974: PC70, 71

1975: PC74

Losses

none

Transfers

none

Discarding

1994: PC54, 55, 57

1995: PC56, 58

1996: PC60-63, 71

1997: PC59

1999: PC67-69

2000: PC66, 70

2012: PC74



Displacement standard, t

46

Displacement full, t

64

Length, m

21.0

Breadth, m

5.30

Draught, m

1.22

No of shafts

2

Machinery

2 Ikegai-Benz MB820Db diesels

Power, h. p.

2200

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)

240(23)

Armament

1 x 1 - 12.7/90

Electronic equipment

MD 806 radar

Complement

10

Project history: Small patrols craft.

Modernizations: None.

Naval service: No significant events.

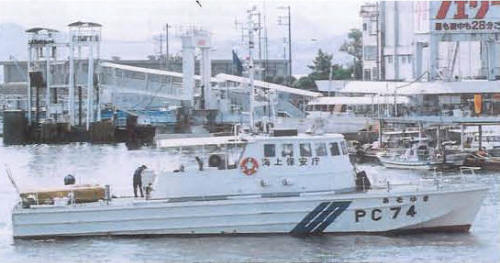

Asoyuki 2008
